Product Description

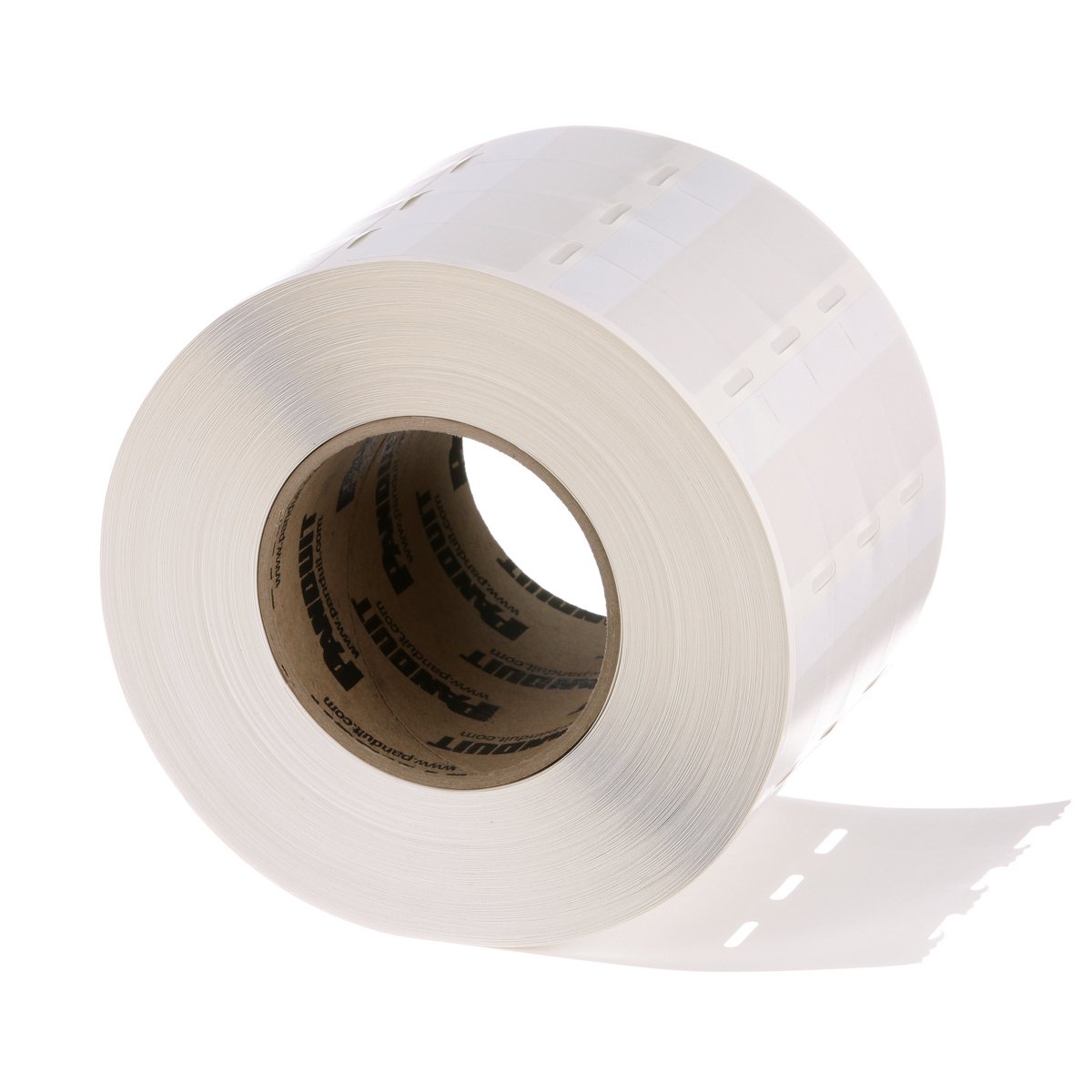

The Panduit S200X225VATY self-laminating label features a white print-on area and clear overlaminate. Constructed from vinyl and sized for wire and cable applications, these labels are supplied on rolls. Use with Panduit RMH4BL hybrid thermal transfer ribbon. Ideal for 8 - 4 AWG wires.
- Self-laminating adhesive labels supplied on rolls, include a colored print-on area and clear overlaminate
- Use with Panduit RMH4BL hybrid thermal transfer ribbon
- Sized specifically for wire and cable applications
Product Highlights

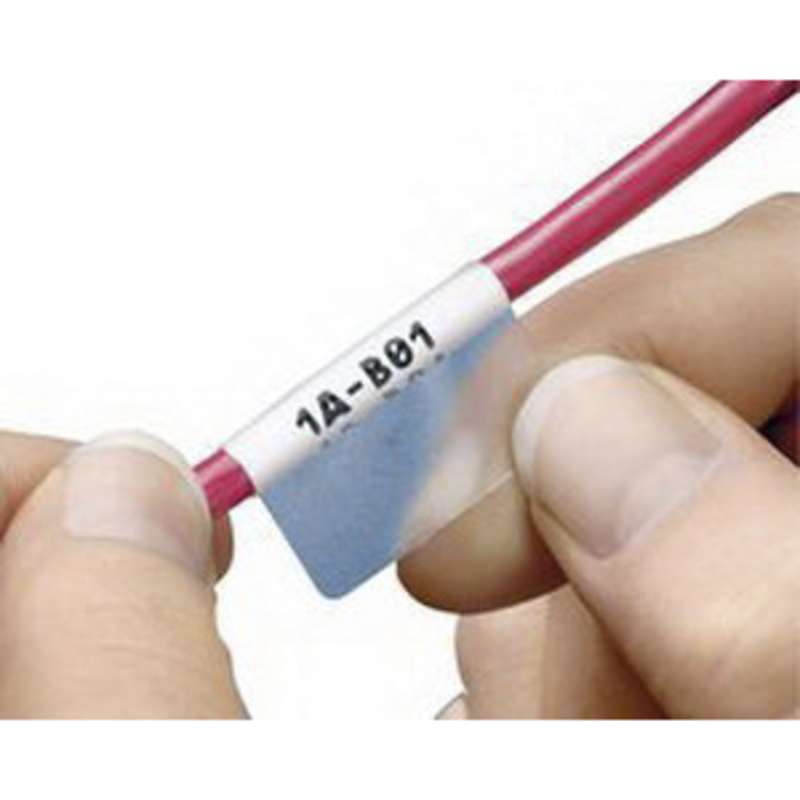

The Panduit S200X225VATY label ensures clear identification and protection for wire and cable marking.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: S200X225VATY
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: S200X225VATY
-
Manufacturer: Panduit
-
Brand: Panduit
-
Country of Origin: United States
-
Made in USA: Yes
-
Color: White
-
Material: Vinyl
-
Standard: RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
-
UPC: 074983439836
-
GTIN: 00074983439836
-
Item Type: Self-Laminating Label
-
Length: 2.25
-
Length UOM: Inch
-
Width: 2
-
Width UOM: Inch
-
Temperature Range: 150 °F
-
Application: Cable, Wire Marking, Indoor and Outdoor Applications
-
Legend: BLANK
-
Legend Background Color: White
-
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 0.15.01|cUL Listed|RoHS Compliant|UL 969 File No. MH14979
-
Suitable For Use With: Dot Matrix Laser and Thermal Transfer Printer
-
Product Type: Self-Laminating Label
-
Adhesive Type: Self-Laminating
-
Primary Color: White
-
Standards Met: RoHS Compliant
-
Material Category: Plastic
-
Printer Compatibility: Thermal Transfer Printer
-
Recommended Ribbon Series: Thermal Transfer Hybrid Ribbon
-
Overall Width: 2 in, 50.8 mm
-
Overall Length: 2.25 in, 57.2 mm
-
Printer Type: Thermal Transfer
-
Maximum Cable Diameter: 12.2 mm, .48 in
-
Minimum Cable Diameter: .24 in, 6.1 mm
-
Compatible Wire Size: 4 - 8 AWG
-
Number of Labels: 1000
-
Print-On Area Height: 19 mm, .75 in
-
Use With: Hybrid Thermal Transfer Ribbon
-
Item [Specifications]: Thermal Transfer Self-Laminating Adhesive Label
-
Label Type [Specifications]: Print-on, Self Laminating
