Panduit S12-40-C StrongHold Contractor Grade Cable Tie 11.81 in 100 Pack

Product Description

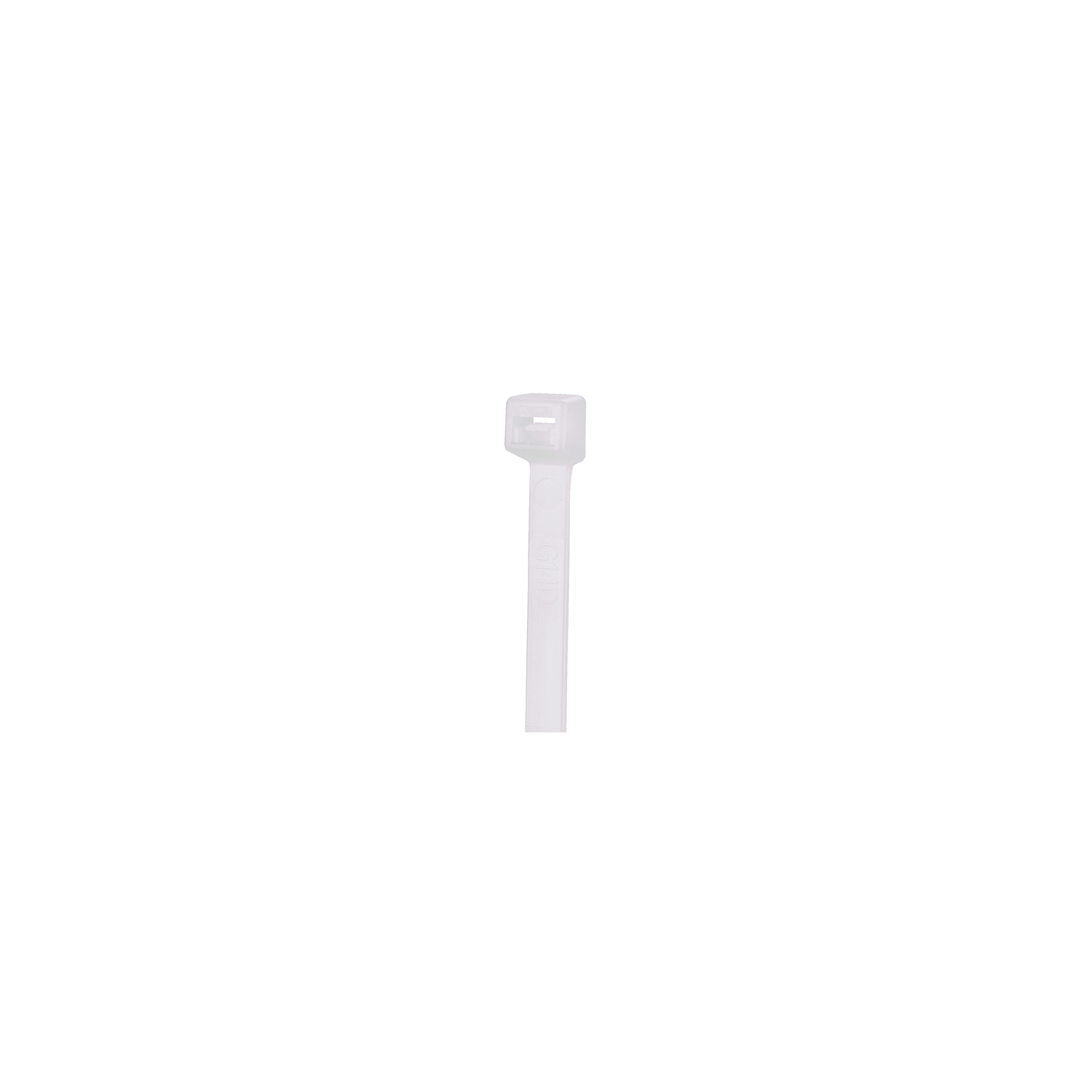

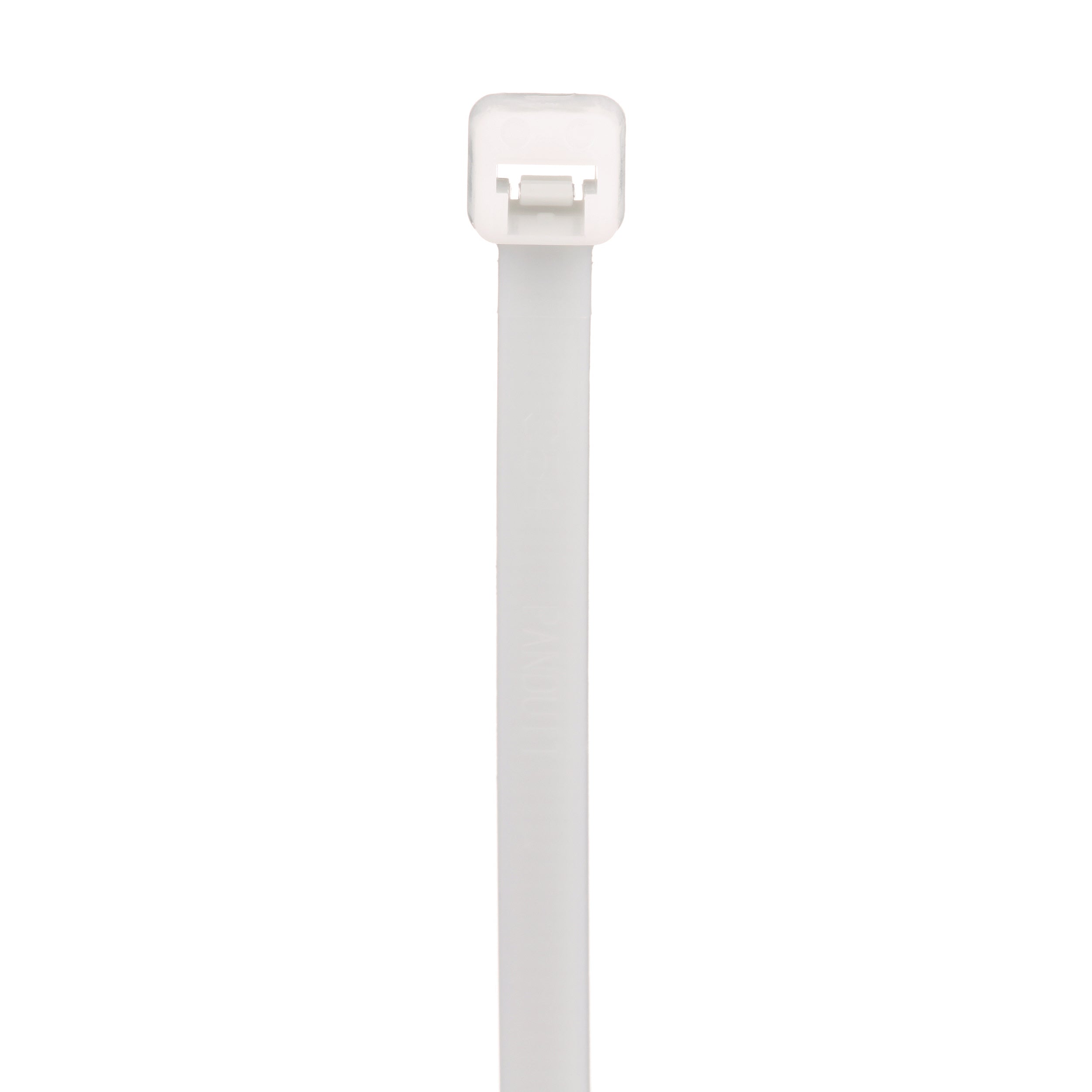

Panduit S12-40-C is a StrongHold intermediate cable tie intended for commercial construction and general-purpose cable management. It is made of Nylon 6.6, AH-2 plenum rated, and measures 11.81 in (300 mm) in length. The tie provides a minimum loop tensile strength of 40 lb and supports bundle diameters up to 2.99 in, supplied in packs of 100 for installation and routing applications.

• Material: Nylon 6.6 with AH-2 plenum (air-handling) rating suitable for indoor plenum environments
• Dimensions: 11.81 in (300 mm) length, 0.26 in width, 0.05 in thickness; supports bundle diameters up to 2.99 in
• Performance and compliance: 40 lb minimum loop tensile strength, locking mechanism, meets UL 62275 (Type 2, 21) and RoHS

Product Highlights

Intermediate nylon 6.6 plenum-rated cable tie, 11.81 in length, 40 lb tensile strength, 100 per pack

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: S12-40-C
• Country of Origin: China

Technical Specifications

• Manufacturer: PANDUIT
• Manufacturer Part Number: S12-40-C
• Brand: Panduit
• Sub Brand: StrongHold
• Item Type: Cable Tie
• Material: Nylon 6.6
• Length: 11.81 in (300 mm)
• Width: 0.26 in (6.7 mm)
• Thickness: 0.05 in
• Tensile Strength: 40 lb (178 N)
• Maximum Bundle Diameter: 2.99 in (76 mm)
• Minimum Bundle Diameter: 0.08 in (2 mm)
• Temperature Rating: -40 to 85 °C (-40 to 185 °F)
• Environment Application: Plenum (AH-2)
• Lock Mechanism: Locking
• Standards: UL 62275 Compliant (Type 2, 21); RoHS Compliant
• Package Quantity: 100 per pack
• UNSPSC: 39121703
• UPC: 613056257955
• GTIN: 00613056257955
• Country of Origin: China
