Product Description
The Panduit S100X400VATY thermal transfer vinyl label features a white print-on area and clear overlaminate, designed for 2 - 1 AWG wires. These self-laminating adhesive labels are supplied on rolls and include a colored print-on area and clear overlaminate. It is sized specifically for wire and cable applications.

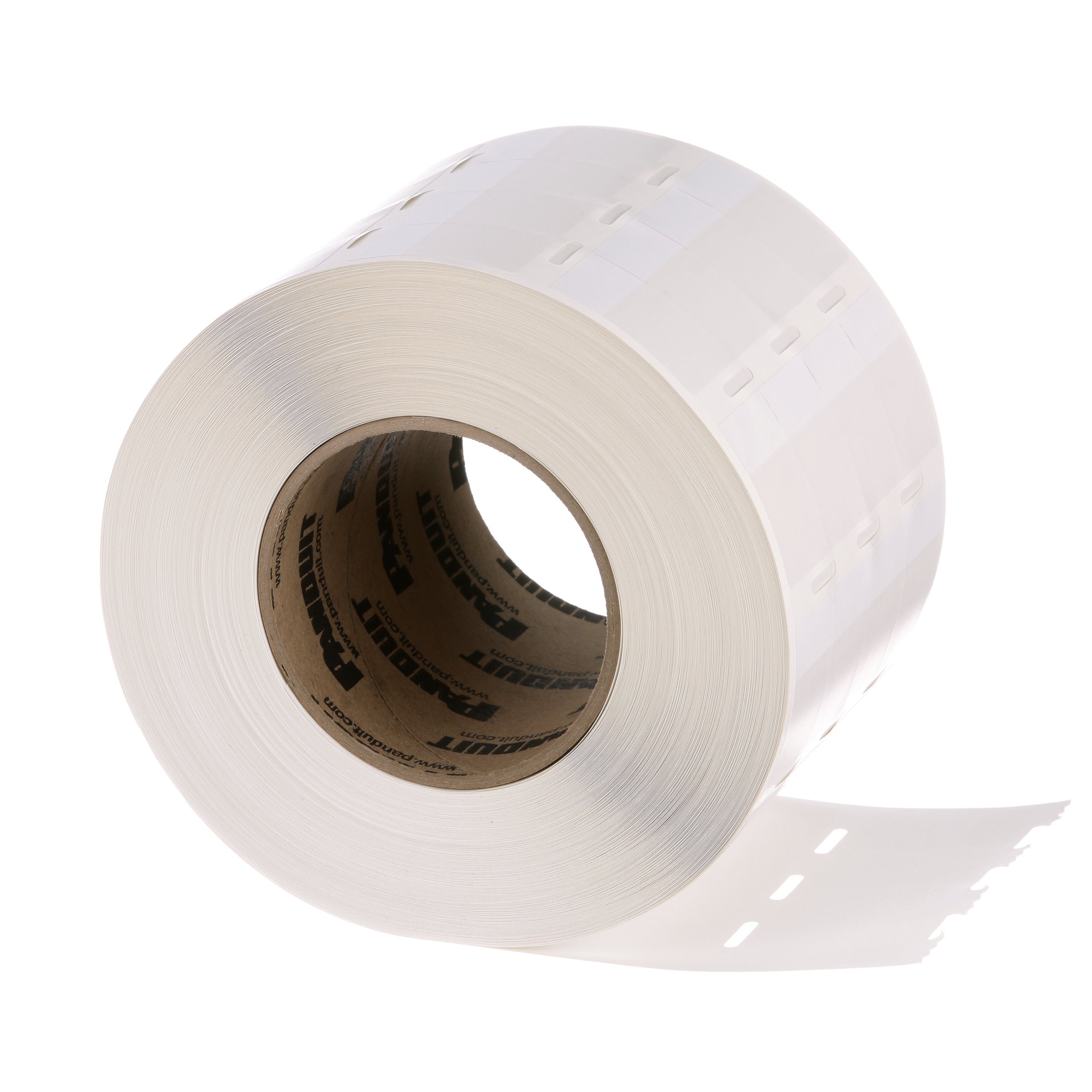

- Self-laminating adhesive labels supplied on rolls
- Includes a colored print-on area and clear overlaminate
- Use with Panduit RMH4BL hybrid thermal transfer ribbon
Product Highlights

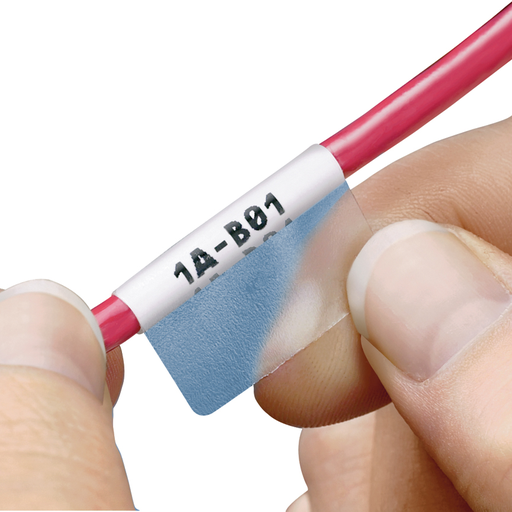

The S100X400VATY label is made of vinyl and is ideal for wire and cable applications. It provides clear and durable identification.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: S100X400VATY
-
Country of Origin: United States
Technical Specifications
-
Label Types: VINYL
-
Type: Self-Laminating
-
Material: Vinyl
-
Standard: RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
-
UPC: 074983439713
-
GTIN: 00074983439713
-
Item Type: Self-Laminating Label
-
Length: 4
-
Length UOM: Inch
-
Width: 1
-
Width UOM: Inch
-
Temperature Range: 150 °F
-
ECCN: EAR99
-
Quantity Per Row: 4
-
Adhesive Material: Acrylic
-
Compatible Ribbon: Thermal Transfer Hybrid
-
Compatible Printer: Thermal Transfer
-
Wire/Cable Diameter Max: N/A
-
Wire/Cable Diameter Min: N/A
-
Standard Package Quantity: 2500
-
Wire/Cable Gauge Size Max: NOT SPECIFIED
-
Wire/Cable Gauge Size Min: NOT SPECIFIED
-
Max Temperature: 66C
-
Min Temperature: -40C
-
Application: Cable, Wire Marking, Indoor and Outdoor Applications
-
Legend: BLANK
-
Legend Background Color: White
-
Suitable For Use With: Dot Matrix and Thermal Transfer Printer
-
Mfg Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 No. 0.15.01|cUL Listed|UL 969/MH14979
-
Printer Type: Thermal Transfer
-
Item [Specifications]: Thermal Transfer Label
-
Length [Specifications]: 4"
-
Label Size [Specifications]: 4 in x 1 in
-
Label Color [Specifications]: White
-
Label Shape [Specifications]: Rectangle
-
Label Height [Specifications]: 4 in
-
Product Type [Specifications]: Self-Laminating Label
-
Ribbon Color [Specifications]: Black on White
-
Core Diameter [Specifications]: 3 in
-
For Wire Gauge [Specifications]: 2 AWG to 1 AWG
-
For Print Method [Specifications]: Thermal Transfer
-
For Wire Diameter [Specifications]: 0.32 in to 0.95 in
-
Label Media Format [Specifications]: Precut Roll Cartridge
-
Maximum Wire Gauge [Specifications]: 1 AWG
-
Minimum Wire Gauge [Specifications]: 2 AWG
-
Recommended Ribbon [Specifications]: RMH4BL Hybrid Thermal Transfer Ribbon
-
Indoor/Outdoor Usage [Specifications]: Indoor/Outdoor
-
Maximum Wire Diameter [Specifications]: 0.95 in
-
Minimum Wire Diameter [Specifications]: 0.32 in
-
Label Attachment Style [Specifications]: Self-Laminating
-
Printable Portion Width [Specifications]: 1 in
-
Printable Portion Height [Specifications]: 1 in
-
Number of Labels Included [Specifications]: 2,500
-
Maximum Service Temperature [Specifications]: 150 Degrees F
-
Minimum Service Temperature [Specifications]: -40 Degrees F
-
Green Environmental Attribute [Specifications]: RoHS
-
Color - Self-Laminating Cable & Wire Labels [Specifications]: Black on White
-
Printable Area - Self-Laminating Cable & Wire Labels [Specifications]: 1 in H x 1 in W
-
Adhesive Subhead - Self-Laminating Cable & Wire Labels [Specifications]: Acrylic Adhesive
-
Material Subhead - Self-Laminating Cable & Wire Labels [Specifications]: Vinyl
-
Label Color & Finish - Self-Laminating Cable & Wire Labels [Specifications]: White
-
Size: 1"
