Product Description

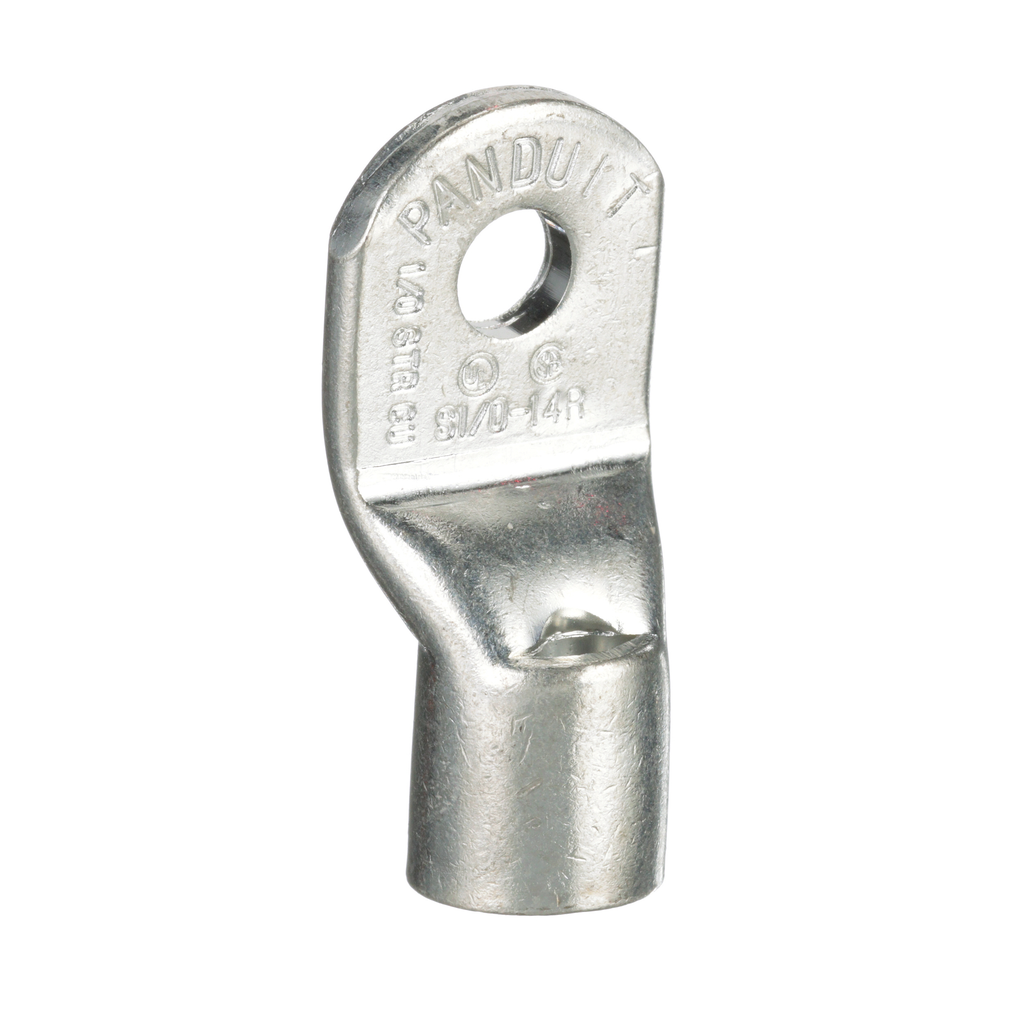

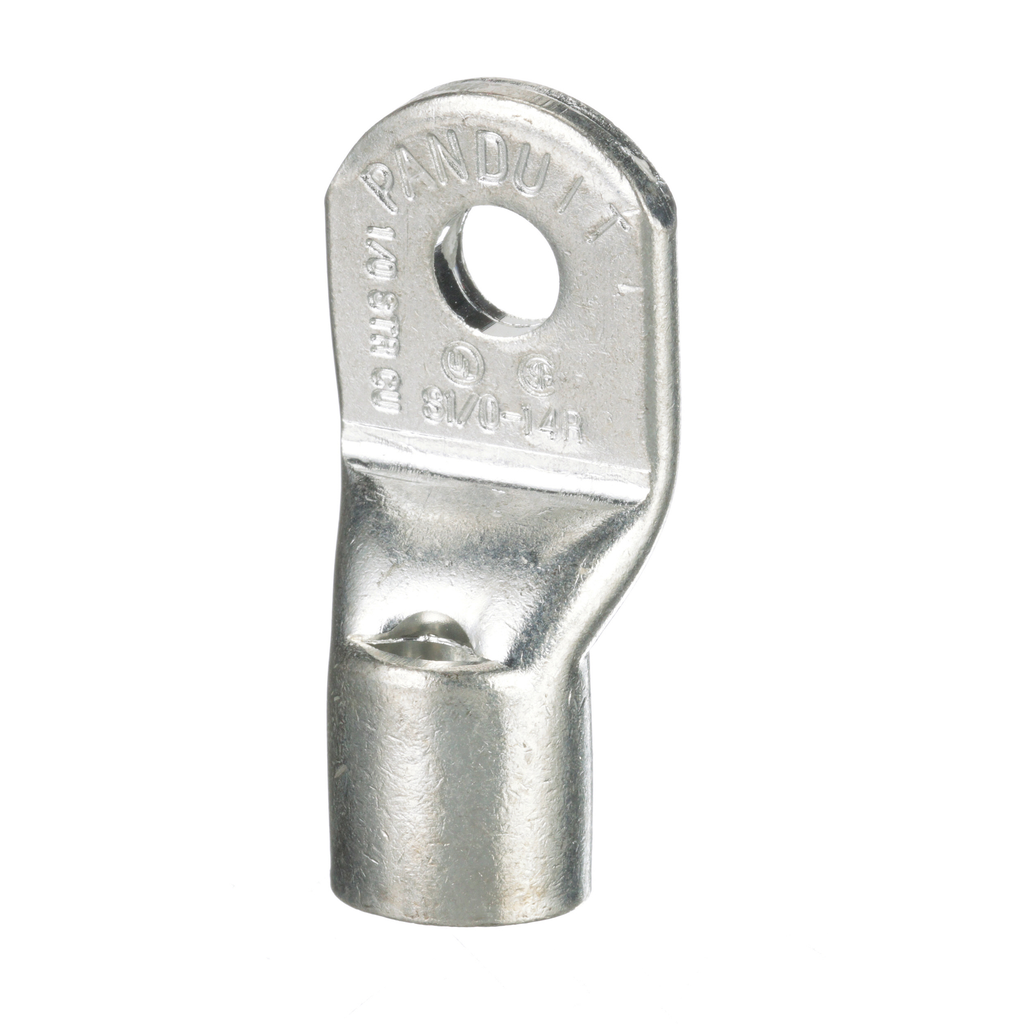

The Panduit S1/0-14R-C is a ring terminal designed for secure and reliable connections. This tubular ring terminal accommodates 1/0 AWG wire and features a 1/4" stud size. It is non-insulated and comes in bulk packaging, ideal for various electrical applications.
- Accommodates 1/0 AWG wire
- Features a 1/4" stud size
- Non-insulated design
Product Highlights
This ring terminal ensures a solid connection for electrical projects.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: S1/0-14R-C
-
Country of Origin: MX - Mexico
Technical Specifications
-
Category: Connectors, Interconnects
-
Terminals: Ring Connectors
-
Width - Outer Edges: 0.760" (19.30mm)
-
Manufacturer: Panduit Corp
-
Length - Overall: 1.600" (40.64mm)
-
Series: Pan-Lug
-
Mounting Type: Free Hanging (In-Line)
-
Packaging: Bulk
-
Termination: Crimp, Funnel Opening
-
Part Status: Active
-
Wire Gauge: 1/0 AWG
-
Terminal Type: Flat Sided
-
Insulation: Non-Insulated
-
Stud/Tab Size: 1/4 Stud
-
Contact Material: Copper
-
Thickness: 0.120" (3.05mm)
-
Contact Finish: Tin
-
Material: Copper
-
Finish: Tin-Plated
-
Color: Metallic
-
Conductor Size: 1/0 AWG
-
Stud Hole Spacing: 1/4 in.
-
Lug Wire Size: 1/0 AWG
-
Color Family: Metallic
-
Length: 1.6 in.
-
Angle: Straight
-
Barrel Length: 0.58 in
-
Barrel Type: Seamless Tubular
-
Cable Size: 1/0 AWG AWG
-
Stud Size: 1/4 In.
-
TC Connection: Beveled
-
Tongue Thickness: 0.12 in
-
Tongue Type: Round
-
Tongue Width: 0.76 in
-
Type: Tubular Ring Compression Lug
-
Overall Length: 1.6 in
-
Width: 0.76 in
-
Buy American Compliant: Y
-
Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13
