Panduit S050X075VATY Self-Lam, Vinyl, White, 0.75 inchesx0.5 inches, 5000 Lbls, TT, 0.25 inches PO H

Product Description

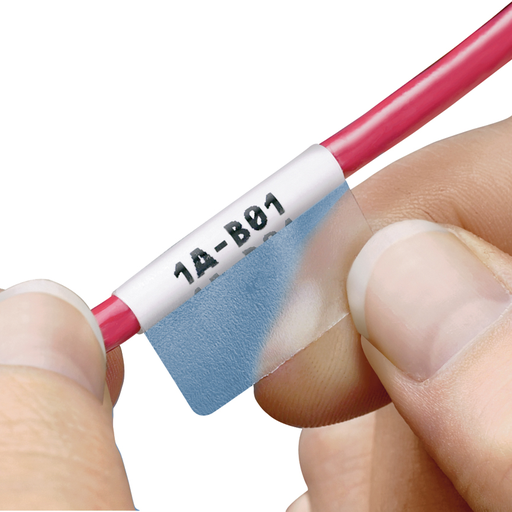

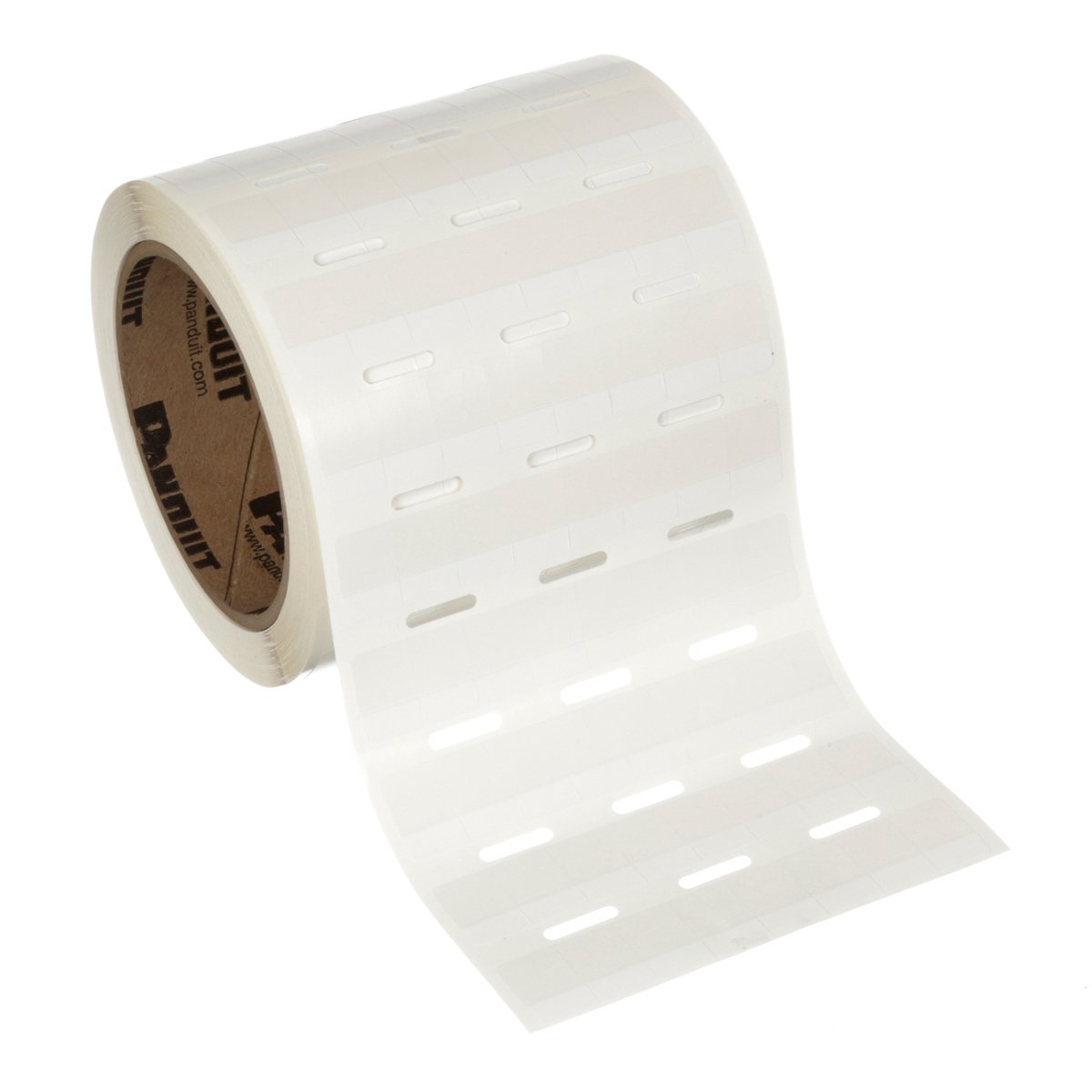

The PANDUIT S050X075VATY thermal transfer self-laminating label includes a white print-on area and clear overlaminate for easy identification. It is sized specifically for wire and cable applications. This vinyl label measures 0.50 x 0.75 inches and is suitable for use with Easy-Mark Plus Labeling Software and TDP printers. Each package contains 5000 labels.

• Includes a white print-on area and clear overlaminate
• Sized for wire and cable applications
• Made of durable vinyl

Product Highlights

The PANDUIT S050X075VATY self-laminating label is ideal for cable coding and wire identification, providing clear and durable marking.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: S050X075VATY
• Country of Origin: United States

Technical Specifications

• Catalog Number: S050X075VATY
• Manufacturer: Panduit
• Brand: Panduit
• Country of Origin: United States
• Made in USA: Yes
• Color: White
• Material: Vinyl
• Standard: RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
• UPC: 074983439171
• GTIN: 00074983439171
• Item Type: Self-Laminating Label
• Length: 0.75 inch
• Width: 0.5 inch
• Temperature Range: 150 °F
• ECCN: EAR99
• UNSPSC: 55121612
• Adhesive Material: Acrylic
• Compatible Printer: LS8E, LS8EQ
• Compatible Ribbon: None
• Wire/Cable Diameter Max: N/A
• Wire/Cable Diameter Min: N/A
• Standard Package Quantity: 5000
• Application: Cable, Wire Marking, Indoor and Outdoor Applications
• Legend: BLANK
• Legend Background Color: White
• Suitable For Use With: Cable/Wire Marking and Thermal Transfer Printer
• Type: Self-Laminating
• Maximum Operating Temperature: 150 °F, 65 °C
• Minimum Operating Temperature: -40 °C, -40 °F
• Overall Width: 12.7 mm, 5 in
• Overall Length: 19 mm, .75 in
• Printer Type: Thermal Transfer
• Maximum Cable Diameter: .16 in, 4.1 mm
• Minimum Cable Diameter: .08 in, 2 mm
• Compatible Wire Size: 14 - 18 AWG
• Print-On Area Height: .25 in, 6.4 mm
