Panduit PV8-56R-TY Ring Terminal 8 AWG 5/16 inches Stud

Product Description

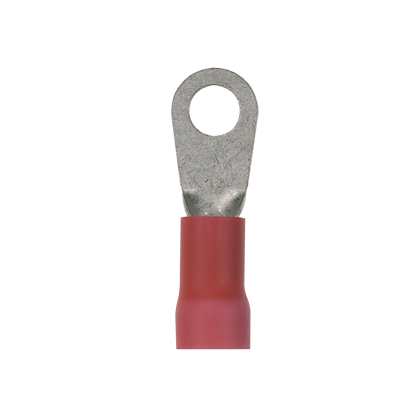

The Panduit PV8-56R-TY is a ring terminal designed for 8 AWG cables with a 5/16" stud size. The vinyl insulation ensures safety and durability, making it ideal for various applications. It is crafted from high-quality copper with a tin-plated finish, offering excellent conductivity and corrosion resistance.

• Brazed Seam
• Maximum operating temperature of 105°C (221°F)
• Voltage rating of 105 kV (221 V)

Product Highlights

This ring terminal guarantees reliable performance with its funnel entry barrel type facilitating easy installation and RoHS compliance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV8-56R-TY

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination Method: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 8 AWG
• Series: Pan-Term
• Insulation: Vinyl
• Packaging: Bulk
• Features: Brazed Seam
• Part Status: Active
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 5/16 Stud
• Contact Finish: Tin
• Thickness: 0.040" (1.02mm)
• Insulation Diameter: 0.280" (7.11mm)
• Width - Outer Edges: 0.590" (14.99mm)
• Material - Insulation: Vinyl
• Length - Overall: 1.640" (41.66mm)
• Base Product Number: PV8
• Mounting Type: Free Hanging (In-Line)
• Maximum Operating Temperature: 105 °C, 221 °F
• Voltage: 105 kV, 221 V
• Outside Diameter: .28 in, 7.1 mm
• Material: Copper
• Barrel Length: .38 in, 9.5 mm
• Wire Insulation Diameter: .28 in, 7.1 mm
• Barrel Type: Funnel Entry
• Finish: Tin Plated
• Product Type: Loose Piece Ring Terminal
• Type: Ring Tongue Terminal
• Body Orientation: Straight
• Stud Size (mm): 7.93
• Plating: Tin
• Maximum Voltage Rating: 600V
• Product Length (mm): 41.66
• Product Depth (mm): 14.99
• Mounting: Cable Mount
