Panduit PV8-14R-QY Ring Terminal, Vinyl, 8 AWG, 1/4 Inch Stud, PK25

Product Description

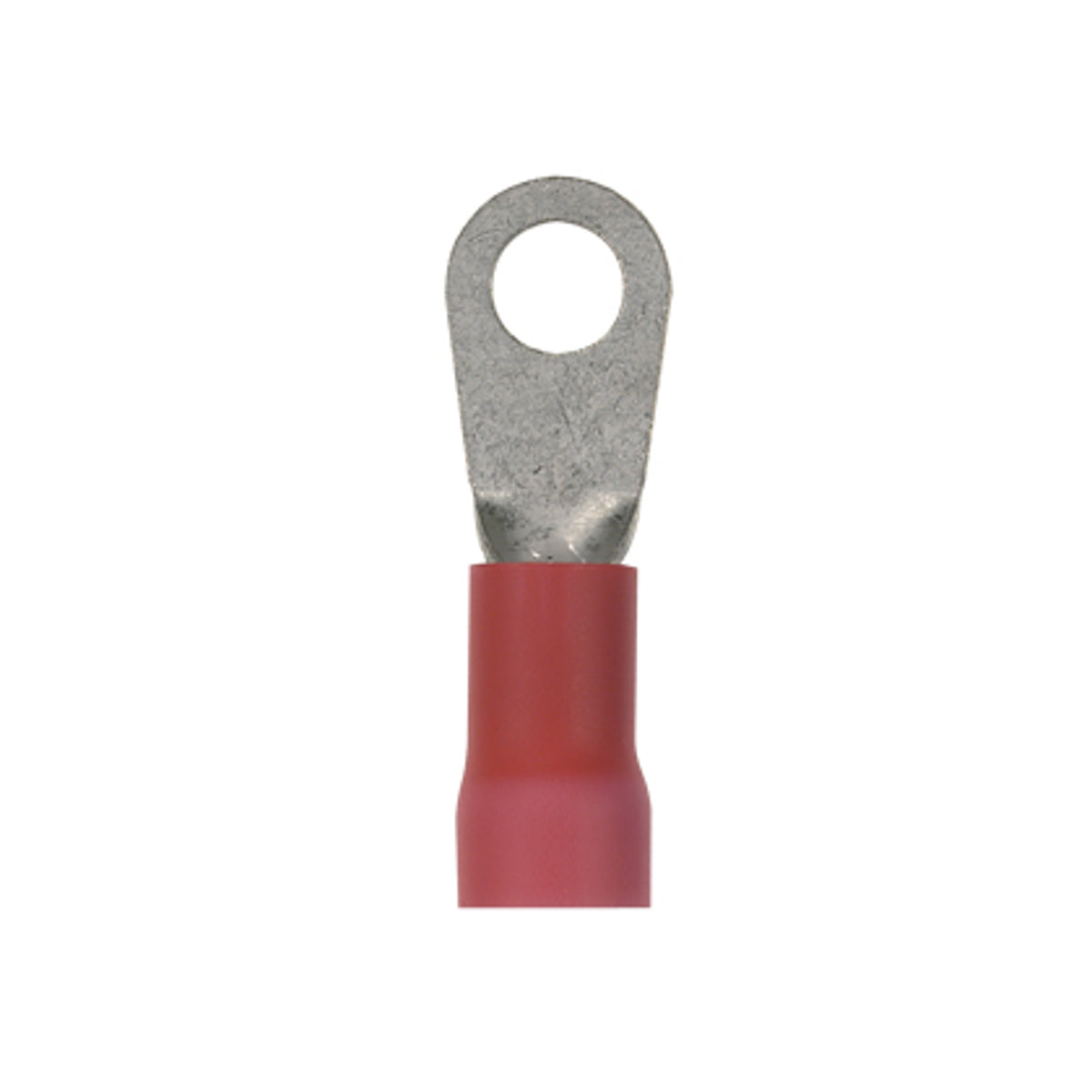

The PV8-14R-QY Panduit ring terminal is a vinyl insulated terminal designed for use with 8 AWG stranded copper wire and 1/4 inch studs. This product features a robust barrel construction that protects against splitting during crimping. The internal barrel serrations enhance wire contact, ensuring a secure connection.

• Compatible with #8 AWG stranded copper wire
• Vinyl insulation for electrical and thermal protection
• Maximum voltage rating of 600V

Product Highlights

The Panduit PV8-14R-QY ring terminal is ideal for industrial and automotive applications where high vibration resistance is crucial. It is UL Listed and RoHS compliant, ensuring high quality and reliability.

Product Information

Standard Information

• Brand: Panduit
• MPN: PV8-14R-QY

Technical Specifications

• Catalog Number: PV8-14R-QY
• Material: Copper
• Insulation: Vinyl
• Color: Red
• Voltage Rating: 600V
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Wire Size: #8 AWG
• Stud Size: 1/4 inch
• Finish: Tin-Plated
• Standards: cULus Listed 587H E52164, CSA Certified LR31212
• Quantity: 25
