Product Description

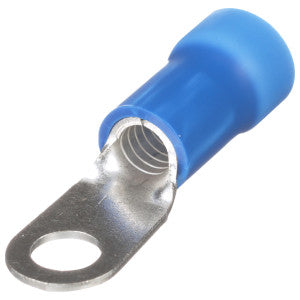

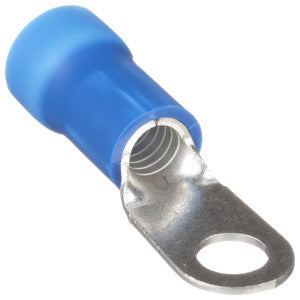

The PANDUIT PV6-14R-X Pan-Term® Terminal is a vinyl insulated ring terminal. The brazed seam protects the terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. It is designed for 6 AWG wire with a 1/4 inch stud size.
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Vinyl insulation
Product Highlights
The PANDUIT PV6-14R-X ring terminal ensures secure wire connections with its durable construction and insulated design.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PV6-14R-X
-
Country of Origin: MX - Mexico
Technical Specifications
-
IGCC: 4543
-
Size: 1/4IN
-
Type: Ring Terminal
-
Finish: Tin-Plated
-
Material: Copper
-
Standard: cULus Listed 587H E52164; CSA Certified LR31212
-
Enclosure: Ring shape
-
Wire Size: NO.6 AWG
-
Connection: Funnel Entry
-
Insulation: Vinyl
-
Family group: CONNECTORS
-
Manufacturer: PANDUIT
-
Voltage Rating: 600
-
Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
-
ECCN: EAR99
-
UNSPSC: 39121409
-
Brand: Pan-Term
-
Use With: CT-720 (CD-720PV8-2); CT-2600/L (CD-2600-PV6)
-
Color: Blue
-
Conductor Size: 6 AWG
-
Flammability Rating: UL94V-0
-
Rated Voltage: 600V
-
Stud Size: 1/4 in.
-
Lug Wire Size: 6 AWG
-
Color Family: Blue
-
Length: 1.65 in.
-
Width: 0.47 in.
-
Max. Temperature Rating: 221
F
-
Category: Connectors, Interconnects
-
Terminals: Ring Connectors
-
Termination: Crimp
-
Series: Pan-Term
-
Features: Brazed Seam
-
Part Status: Active
-
Terminal Type: Flat Sided
-
Contact Material: Copper
-
Contact Finish: Tin
-
Thickness: 0.045" (1.14mm)
-
Insulation Diameter: 0.340" (8.64mm)
-
Width - Outer Edges: 0.470" (11.94mm)
-
Material - Insulation: Vinyl
-
Length - Overall: 1.650" (41.91mm)
-
Base Product Number: PV6
-
Mounting Type: Free Hanging (In-Line)
