Panduit PV6-12R-X Ring Terminal 6 AWG 1/2 Stud

Product Description

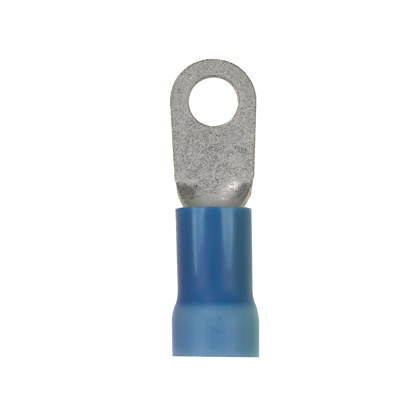

The PANDUIT PV6-12R-X ring terminal is designed for secure electrical connections. Suitable for 6 AWG wire and featuring a 1/2" stud size, this terminal includes vinyl insulation for enhanced safety. It is constructed from copper with a tin-plated finish, ensuring both durability and excellent conductivity. The terminal's brazed seam adds to its robustness.

• Brazed Seam
• 6 AWG wire
• 1/2" stud size

Product Highlights

This ring terminal ensures reliable performance in various applications, making it suitable for professional use.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV6-12R-X

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: Panduit
• Wire Gauge: 6 AWG
• Series: Pan-Term
• Insulation: Insulated
• Packaging: Bulk
• Features: Brazed Seam
• Part Status: Obsolete
• Terminal Type: Flat Sided
• Contact Material: Copper
• Stud/Tab Size: 1/2 Stud
• Contact Finish: Tin
• Thickness: 0.045" (1.14mm)
• Insulation Diameter: 0.340" (8.64mm)
• Width - Outer Edges: 0.820" (20.83mm)
• Material - Insulation: Vinyl
• Length - Overall: 1.840" (46.74mm)
• Base Product Number: PV6
• Mounting Type: Free Hanging (In-Line)
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• Manufacturer Part Number: Panduit PV6-12R-X
• Maximum Operating Temperature: 105 °C, 221 °F
• Voltage: .6 kV, 600 V
• Outside Diameter: .34 in, 8.6 mm
• Material: Copper
• Barrel Length: .72 in, 18.2 mm
• Wire Insulation Diameter: .34 in, 8.6 mm
• Barrel Type: Funnel Entry
• Finish: Tin Plated
• Product Type: Loose Piece Ring Terminal
• Environmental Initiative: ROHS
• Compliant: Yes
• Date of this Information: Unknown
• Notes: Status: Compliant Since Inception
• Brand: PANDUIT
• UPC Code: 074983124602
