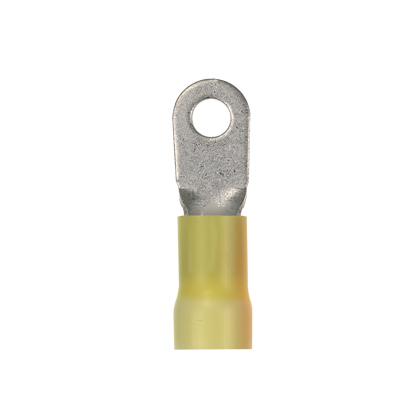

Panduit PV4-38R-E Ring Terminal 4 AWG 3/8 Stud

Product Description

The Panduit PV4-38R-E is a 4 AWG ring terminal designed for enhancing connectivity in large wire installations. Constructed from durable copper with vinyl insulation, this terminal ensures reliable performance. It features a maximum operating temperature of 105°C (221°F) and a voltage rating of 600V (.6kV). The funnel entry barrel type facilitates easy wire insertion, and the tin-plated finish offers corrosion resistance.

• Durable copper construction with vinyl insulation
• Maximum operating temperature of 105°C (221°F)
• Tin-plated finish offers corrosion resistance

Product Highlights

Ideal for electrical and automotive professionals, this ring terminal is RoHS compliant, ensuring environmentally friendly production.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV4-38R-E
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 4 AWG
• Series: Pan-Term
• Insulation: Insulated
• Packaging: Bulk
• Features: Brazed Seam
• Part Status: Active
• Color: Yellow
• Terminal Type: Flat Sided
• Contact Material: Copper
• Stud/Tab Size: 3/8 Stud
• Contact Finish: Tin
• Thickness: 0.050" (1.27mm)
• Insulation Diameter: 0.450" (11.43mm)
• Width - Outer Edges: 0.680" (17.27mm)
• Material - Insulation: Vinyl
• Length - Overall: 1.950" (49.53mm)
• Base Product Number: PV4
• Mounting Type: Free Hanging (In-Line)
• Brand: Pan-Term
• Finish: Tin-Plated
• Standard: cULus Listed 587H E52164
• Use With: CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV4)
• Conductor Size: 4 AWG
• Flammability Rating: UL94V-0
• Insulation Material: Vinyl
• Outer Diameter: 0.45
• Rated Voltage: 600V
• Stud Size: 3/8 in.
• Lug Wire Size: 4 AWG
• Color Family: Yellow
• Length: 1.95 in.
• Width: 0.68 in.
• Max. Temperature Rating: 221 F
• Connectors: Crimp Terminals, Housings, Splices, & Lugs
• Crimp Terminals, Housings, & Splices: Crimp Ring, Spade, Fork & Hook Terminals
• Manufacturer Part Number: Panduit PV4-38R-E
• Maximum Operating Temperature: 105 C, 221 F
• Voltage: 600 V, .6 kV
• Outside Diameter: 11.4 mm, .45 in
• Material: Copper
• Barrel Length: 20.3 mm, .8 in
• Wire Insulation Diameter: 11.4 mm, .45 in
• Barrel Type: Funnel Entry
• Product Type: Ring Terminal
• SKU: PANPV4-38R-E
