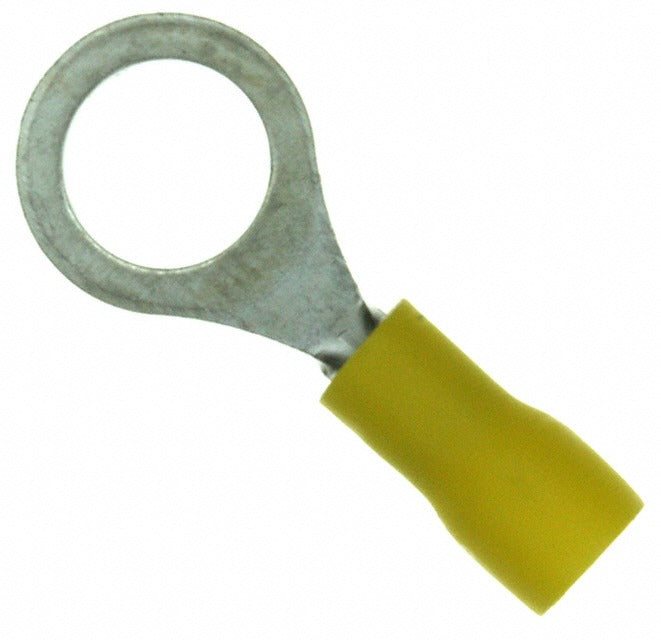

Panduit PV22-10R-C Ring Terminal 10 Stud 22-26 AWG (Bulk)

Brand: PANDUIT
SKU: PV22-10R-C
Availability: In Stock

Ships same day if ordered by 12 pm
$62.03
$62.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Panduit PV22-10R-C is an insulated ring terminal for crimp termination of 22–26 AWG conductors to a #10 stud. It has a vinyl-insulated body with brazed seam construction and a copper contact plated with tin. Contact thickness is 0.020 in (0.51 mm); insulated diameter is 0.110 in (2.79 mm) and overall length is 0.780 in (19.81 mm). The terminal is intended for free-hanging inline connections.

  • Vinyl-insulated ring terminal with brazed seam; intended for crimp termination of 22–26 AWG wire
  • Copper contact with tin finish, 0.020 in (0.51 mm) thickness; fits #10 stud; overall length 0.780 in (19.81 mm)
  • Insulation diameter 0.110 in (2.79 mm); free-hanging (in-line) mounting; Pan-Term series; RoHS3 compliant

Product Highlights

Insulated vinyl ring terminal for #10 stud; crimp termination for 22–26 AWG; copper tin-plated contact; brazed seam; overall length 0.780 in.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: PV22-10R-C
Technical Specifications
Brand
Panduit
Manufacturer Part Number
PV22-10R-C
Description
Ring terminal connector, circular terminal for 10 stud, crimp
Series
Pan-Term
Termination
Crimp
Wire Gauge
22-26 AWG
Stud Size
10 stud
Mounting Type
Free Hanging (In-Line)
Insulation Material
Vinyl
Insulated Diameter
0.110 in (2.79 mm)
Overall Length
0.780 in (19.81 mm)
Width - Outer Edges
0.320 in (8.13 mm)
Contact Material
Copper
Contact Finish
Tin
Contact Thickness
0.020 in (0.51 mm)
Features
Brazed seam; Split crucible
Packaging
Bulk
Pack Quantity
100 ea
RoHS Status
ROHS3 Compliant
Category
Connectors, Interconnects; Terminals; Ring Connectors
Moisture Sensitivity Level (MSL)
Not Applicable
Certifications and Compliance
Buy American Compliant
