PANDUIT PV18-P47-CY TERMINALS
PANDUIT Panduit PV18-P47-CY Vinyl Insulated Pin Terminal 22 - 18 AWG
PANDUIT PV18-P47-CY TERMINALS

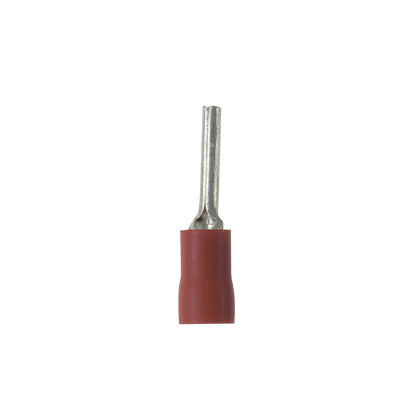

Panduit PV18-P47-CY Vinyl Insulated Pin Terminal 22 - 18 AWG

Panduit PV18-P47-CY Vinyl Insulated Pin Terminal 22 - 18 AWG

Brand: PANDUIT
SKU: PV18-P47-CY
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Panduit PV18-P47-CY is a vinyl insulated pin terminal designed for use with 22 to 18 AWG wires. This terminal features a solid pin that prevents wire damage from over-tightening, ensuring a secure electrical connection.

  • UL rated up to 600V per UL 486 standards.
  • Brazed seam construction protects terminal barrel from splitting during crimping.
  • Internal barrel serrations enhance wire contact and tensile strength.

Product Highlights

This pin terminal is ideal for applications requiring reliable connections in electronic and electrical setups. It supports bending applications with insulation support to avoid wire damage.

Product Information

Standard Information

  • Manufacturer: Panduit
  • Part Number: PV18-P47-CY
Technical Specifications
Wire Size
22 - 18 AWG
Type
Pin Terminal
Material
Copper
Insulation
Vinyl
Color
Red
Pin Length
0.49 inches
Pin Diameter
0.07 inches
Temperature Rating
221 Degrees Fahrenheit
Voltage Rating
600 VAC
