Panduit PV18-P47-CY Vinyl Insulated Pin Terminal

Product Description

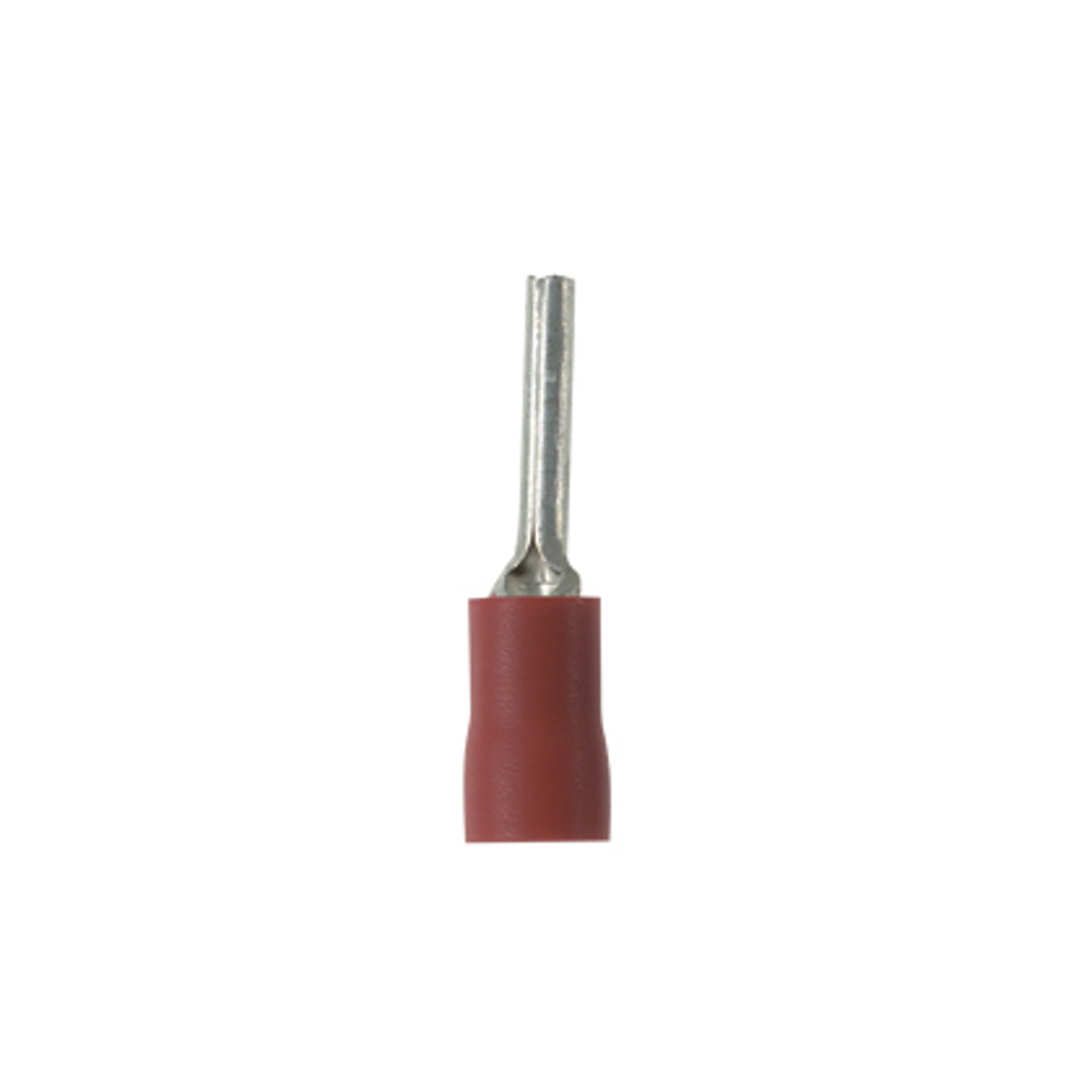

The Panduit PV18-P47-CY is a vinyl insulated pin terminal designed for 22 - 18 AWG wires, featuring a .49 inch pin length. The solid pin design prevents wire damage from overtightening, ensuring a reliable electrical connection. Insulation support helps prevent wire damage in bending applications.

• Brazed seam protects terminal barrel from splitting during crimping.
• Internal barrel serrations assure good wire contact and maximum tensile strength.
• UL rated up to 600 V per UL 486 (18 and 14 gage only).

Product Highlights

This pin terminal is ideal for use with pin-type terminal blocks, providing a secure and durable connection.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV18-P47-CY
• Country of Origin: Mexico

Technical Specifications

• Type: Pin Terminal
• UNSPSC Code: 39121400
• Catalog Number: PV18-P47-CY
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Red
• Connection: Standard
• Enclosure: Pin shape
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL486A/B
• UPC: 074983694822
• GTIN: 00074983694822
• Item Type: Pin Terminal
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Wire Size: 22 - 18 AWG AWG
• IGCC: 4543
• Termination: Crimp
• Series: Pan-Term
• Features: Brazed Seam
• Packaging: Bulk
• Contact Material: Copper
• Pin Diameter: Circular - 0.070" (1.78mm) Dia
• Contact Finish: Tin
• Length - Pin: 0.490" (12.45mm)
• Length - Overall: 0.970" (24.64mm)
• Length - Termination: 0.480" (12.19mm)
• Wire Gauge: 18-22 AWG (1.5~0.5mm)
• Base Product Number: PV18
• Insulation Diameter: 0.150" (3.81mm)
• Product Category: Products
• Connectors: Crimp Terminals, Housings, Splices, & Lugs
• Crimp Wire Pins & Ferrules: Crimp Wire Pins & Ferrules
• Manufacturer Part Number: Panduit PV18-P47-CY
• Pin Length: 12.4 mm, .49 in
• Barrel Type: Brazed
• SKU: PANPV18-P47-CY
• Environmental Initiative: ROHS
• Compliant: Yes
