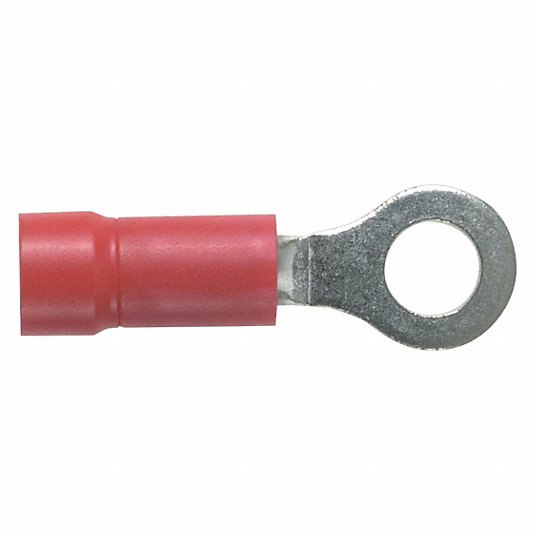

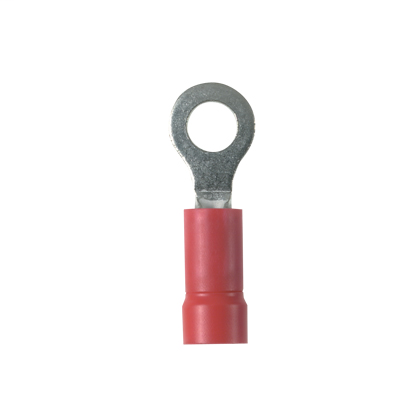

Panduit PV18-8R-MY Ring Terminal 18-22 AWG #8 Stud

Product Description

The PANDUIT PV18-8R-MY ring terminal enhances electrical connections, designed for 18-22 AWG wires and #8 stud size. It features vinyl insulation for safety and a funnel entry for easy installation. The durable copper construction ensures reliable performance, with a maximum operating temperature of 75°C and a voltage rating of 600V. The tin-plated finish ensures long-lasting quality.

• Brazed Seam
• Insulated
• Funnel entry

Product Highlights

Insulated ring terminals slide around posts to make electrical connections on busbars and lugs.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV18-8R-MY
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 18-22 AWG
• Series: Pan-Term
• Insulation: Insulated
• Packaging: Bulk
• Features: Brazed Seam
• Part Status: Active
• Color: Red
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 8 Stud
• Contact Finish: Tin
• Thickness: 0.032" (0.81mm)
• Insulation Diameter: 0.150" (3.81mm)
• Width - Outer Edges: 0.310" (7.87mm)
• Material - Insulation: Vinyl
• Length - Overall: 0.910" (23.11mm)
• Base Product Number: PV18
• Mounting Type: Free Hanging (In-Line)
• Manufacturer Part Number: Panduit PV18-8R-MY
