Product Description

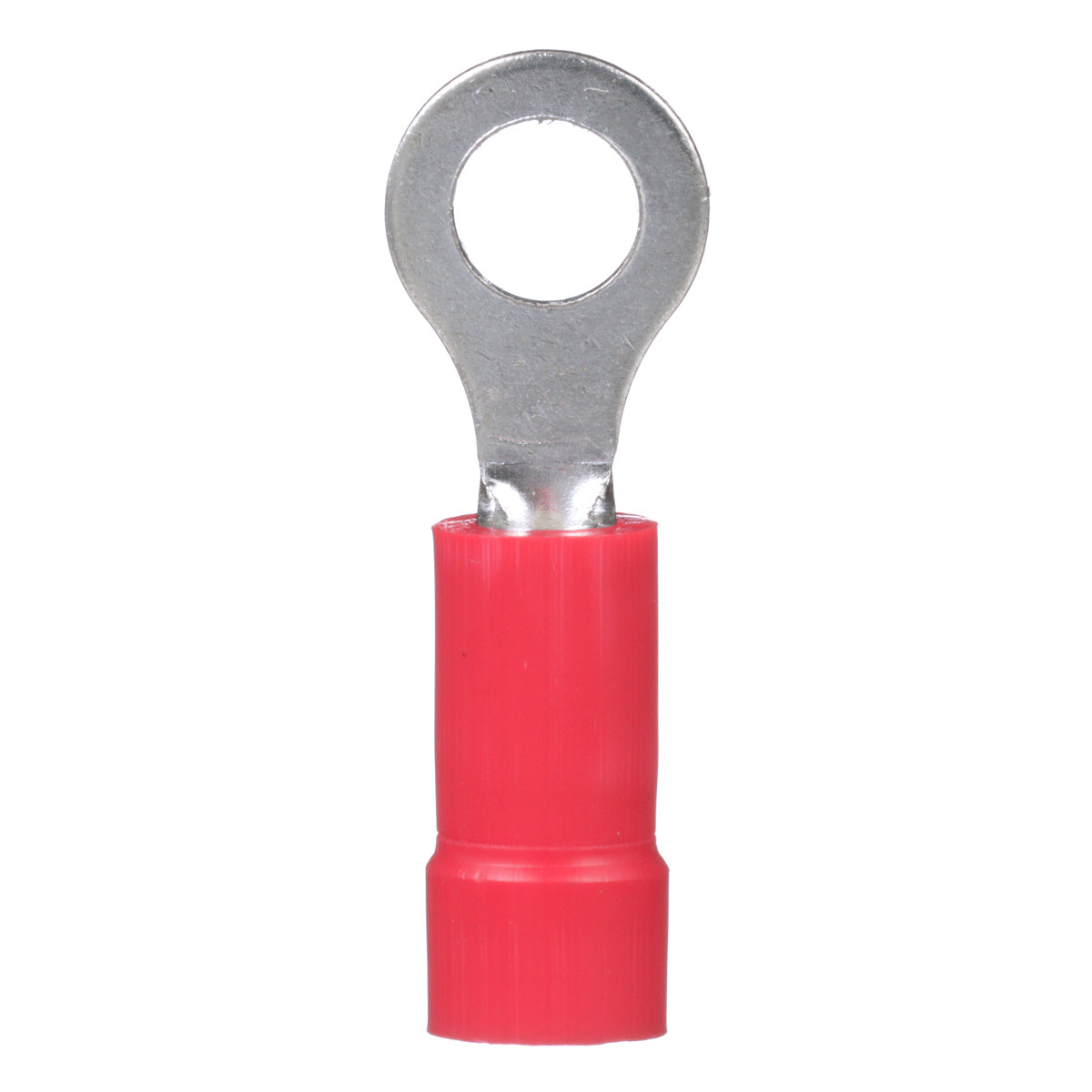

Panduit PV18-8R-CY is a vinyl insulated ring terminal designed for reliable wire connections. This terminal can accommodate wire sizes ranging from twenty-two to eighteen AWG and is suitable for use with a #8 stud size. Its design includes a funnel entry for easy wire insertion, ensuring a secure fit.
- Designed for use with wires ranging from twenty-two to eighteen AWG
- Features a brazed seam for added durability
- UL and CSA rated for voltages up to six hundred volts
Product Highlights
This terminal offers insulation support that helps prevent wire damage during bending applications. The ring tongue design ensures a secure connection even in high vibration environments.
Product Information
Standard Information
-
Manufacturer: Panduit
-
MPN: PV18-8R-CY
Technical Specifications
-
Wire Size: 22 - 18 AWG
-
Stud Size: #8
-
Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
-
Voltage Rating: 600 V
-
Material: Copper
-
Finish: Tin-Plated
-
Insulation: Vinyl
