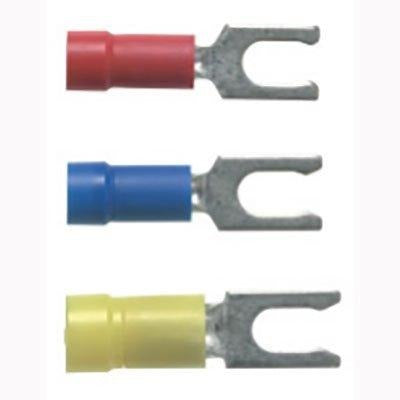

PANDUIT Panduit PV18-6LFW-C Spade terminal connector 6 stud 18-22 AWG (100 pack)
PANDUIT Panduit PV18-6LFW-C Spade terminal connector 6 stud 18-22 AWG (100 pack)

Panduit PV18-6LFW-C Spade terminal connector 6 stud 18-22 AWG (100 pack)

Brand: PANDUIT
SKU: PV18-6LFW-C
Availability: In Stock

Ships same day if ordered by 12 pm
$212.42
$212.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Panduit PV18-6LFW-C is a spade terminal connector with a vinyl-insulated body and crimp termination for 18–22 AWG conductors. It features a tin-plated copper contact with a brazed seam and serrated termination, and is designed to fit a #6 stud. The terminal uses a spring/snap fork design for free-hanging (in-line) mounting and includes a funnel entry insulation grip sleeve.

  • Crimp termination for 18–22 AWG wire; fits #6 stud
  • Tin-plated copper contact with brazed seam and serrated termination
  • Vinyl insulated body with funnel entry insulation grip; free-hanging (in-line) mounting

Product Highlights

Pan-Term series locking spade terminal; 0.900 in length; standard package 100

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: PV18-6LFW-C
Technical Specifications
Brand
Panduit
Manufacturer Part Number
PV18-6LFW-C
Manufacturer
Panduit Corp
Product Series
Pan-Term
Product Type
Spade terminal connector (locking fork style)
Termination
Crimp
Wire Gauge
18-22 AWG
Stud Size
#6
Insulation
Vinyl insulated
Insulation Material
Vinyl
Insulation Diameter
0.150 in (3.81 mm)
Contact Material
Copper
Contact Finish
Tin plated
Features
Brazed seam; Serrated termination; Funnel entry; Insulation grip sleeve
Terminal Type
Spring/Snap (locking fork)
Mounting Type
Free-hanging (in-line)
Length - Overall
0.900 in (22.86 mm)
Width - Outer Edges
0.290 in (7.37 mm)
Tongue Inside Opening
0.140 in (3.56 mm)
Packaging
Bulk
Manufacturer Standard Package
100
Part Status
Obsolete
DigiKey Part Number
PV18-6LFW-C-ND
Category
Connectors, Interconnects - Terminals - Spade Connectors
ECCN
EAR99
HTSUS
8536.90.4000
RoHS Status
Not applicable
Moisture Sensitivity Level (MSL)
Not Applicable
