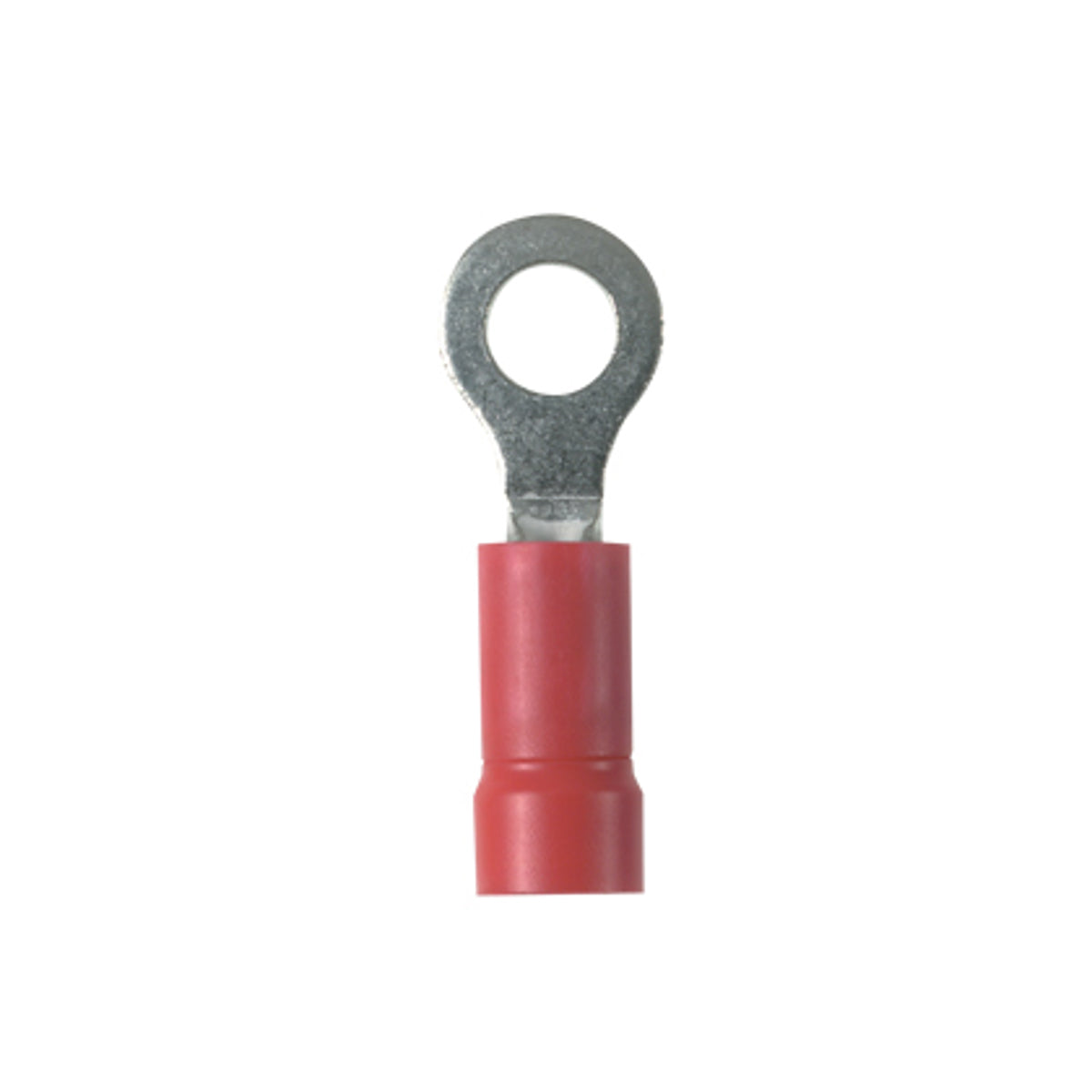

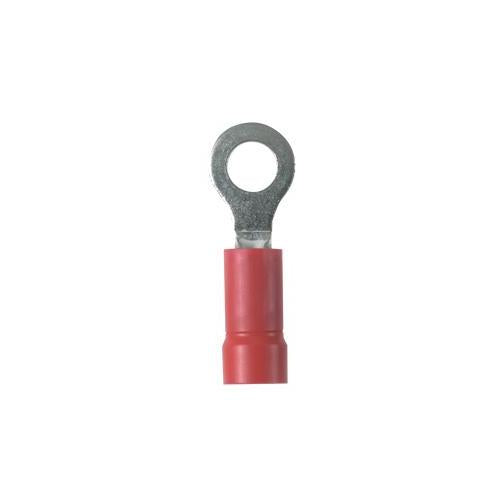

Panduit PV18-10R-MY Ring Terminal, 18 AWG, 0.94 Inches, Replacement MPN

Product Description

The Panduit PV18-10R-MY is a ring terminal designed for solid or stranded conductors of eighteen gauge. This terminal features a funnel entry design and is insulated with vinyl. It has an internal serration barrel for improved wire grip and a brazed seam which enhances the durability of the connection.

• Perfect for 18 AWG wire connections.
• Rated for 600 volts and a temperature limit of 221 degrees Fahrenheit.
• Manufactured from high-quality copper for superior conductivity.

Product Highlights

This terminal ensures reliable wire connectivity in various electrical applications.

Product Information

Standard Information

• Part Number: PV18-10R-MY
• Brand: Panduit

Technical Specifications

• Conductor Size: 18 AWG
• Stud Size: #10
• Material: Copper
• Color: Red
• Finish: Tin Plated
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Barrel Type: Brazed Seam/Funnel Entry/Insulation Support/Internal Serration
• Length: 0.94 inches
• Tongue Size: 0.31 inches wide by 0.03 inches thick
