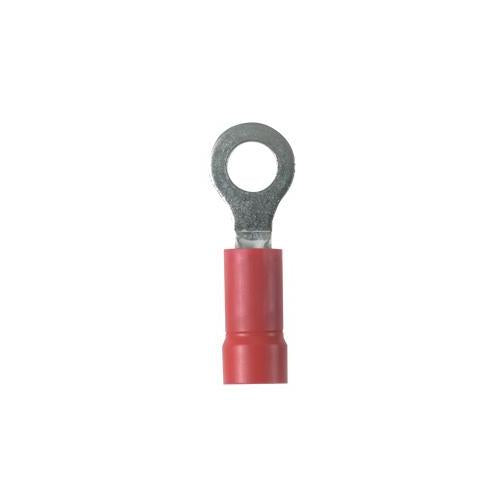

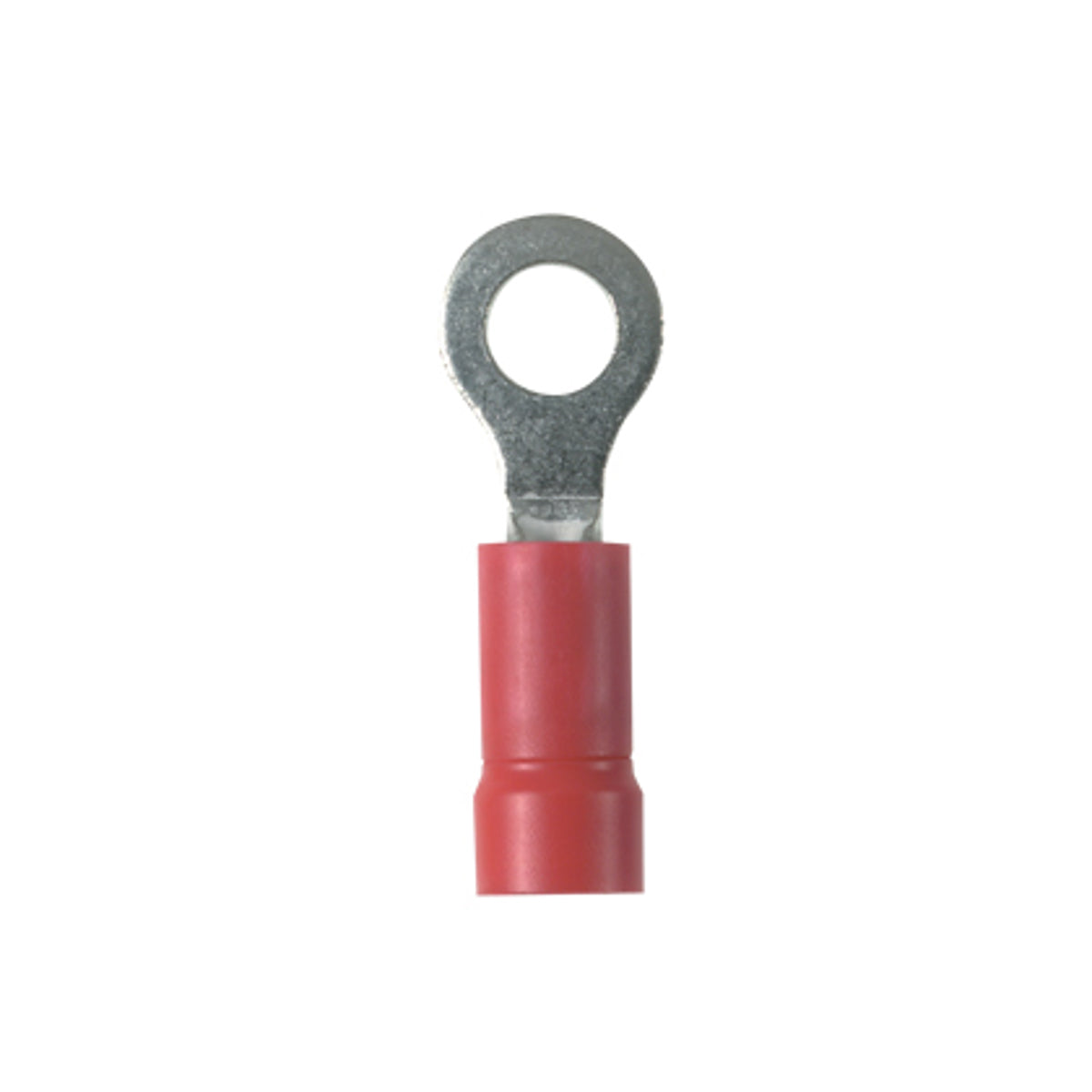

Panduit PV18-10R-CY Vinyl Insulated Ring Terminal

Product Description

The Panduit PV18-10R-CY is a vinyl insulated ring terminal used for wire connections. Designed for conductors ranging from twenty-two to eighteen AWG and featuring a #10 stud size, this terminal ensures secure connections in various applications. The brazed seam prevents the terminal barrel from splitting during the crimp process. Internal barrel serrations ensure optimal wire contact and maximum tensile strength.

• Vinyl insulated, suitable for wire sizes from 22 to 18 AWG
• Designed with a funnel entry for easy wire insertion
• Rated for a maximum of 600 volts

Product Highlights

This terminal is made of copper with a tin-plated finish and is UL and CSA rated, making it reliable for different electrical applications.

Product Information

Standard Information

• Catalog Number: PV18-10R-CY
• Manufacturer: Panduit

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Stud Size: #10
• Length: 0.94 inches
• Material: Copper
• Insulation Type: Vinyl
• Voltage Rating: 600 VAC
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
