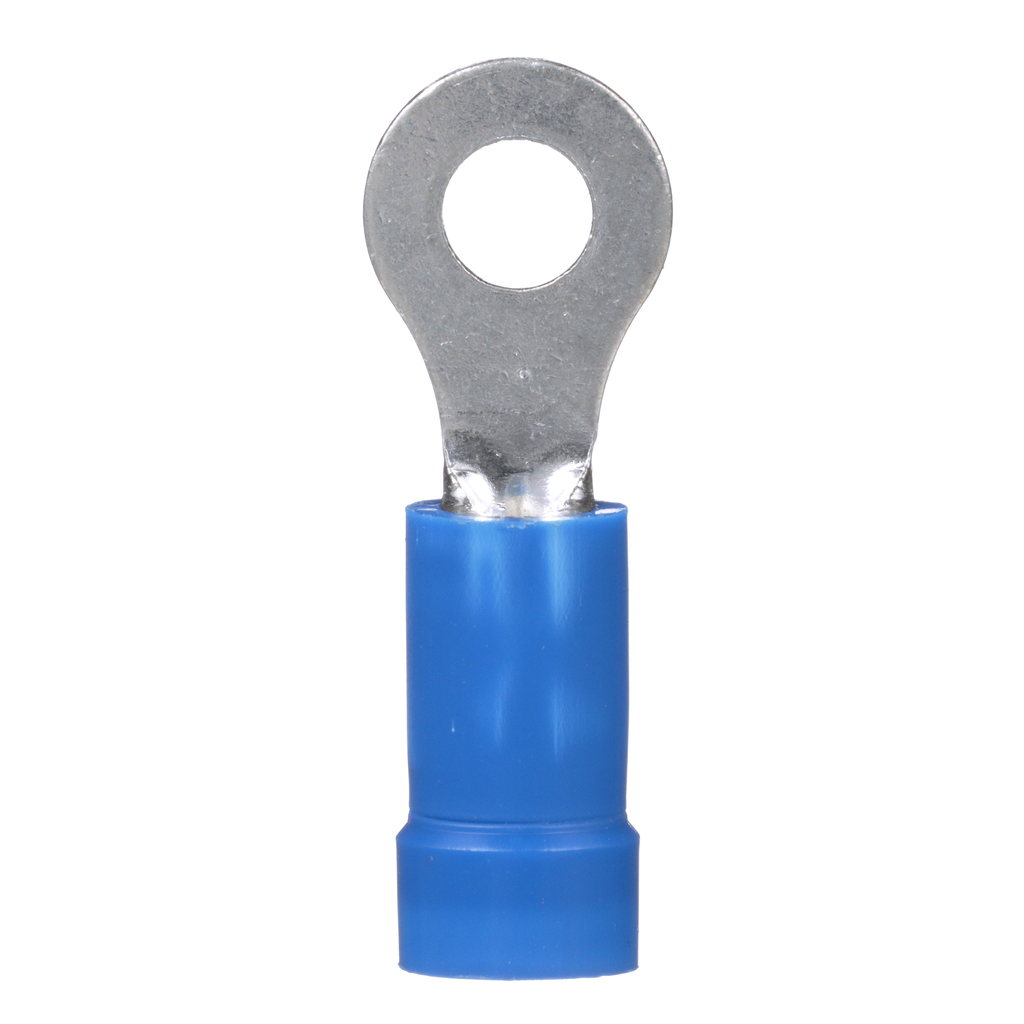

Panduit PV146RM Vinyl Insulated Ring Terminal 14-16 AWG #6 Stud

Product Description

The Panduit PV14-6R-M is a vinyl insulated ring terminal designed for reliable wire connections. It features a brazed seam that prevents the terminal barrel from splitting during the crimping process. Internal barrel serrations ensure good wire contact, providing maximum tensile strength for secure connections.

• Compatible with 14 to 16 AWG wire sizes
• UL and CSA rated for up to 600 volts
• Temperature rating of 221 degrees Fahrenheit (105 degrees Celsius)

Product Highlights

Ideal for high vibration environments, this terminal features a funnels entry and insulation support to protect wires during bending.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PV14-6R-M

Technical Specifications

• Type: Ring Terminal
• Material: Copper
• Finish: Tin-Plated
• Stud Size: #6
• Wire Size: 14-16 AWG
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Country of Origin: Mexico
