Panduit PV14-P47-M Pan-Term Pin Terminal 16-14 AWG 12.4mm Pin L

Product Description

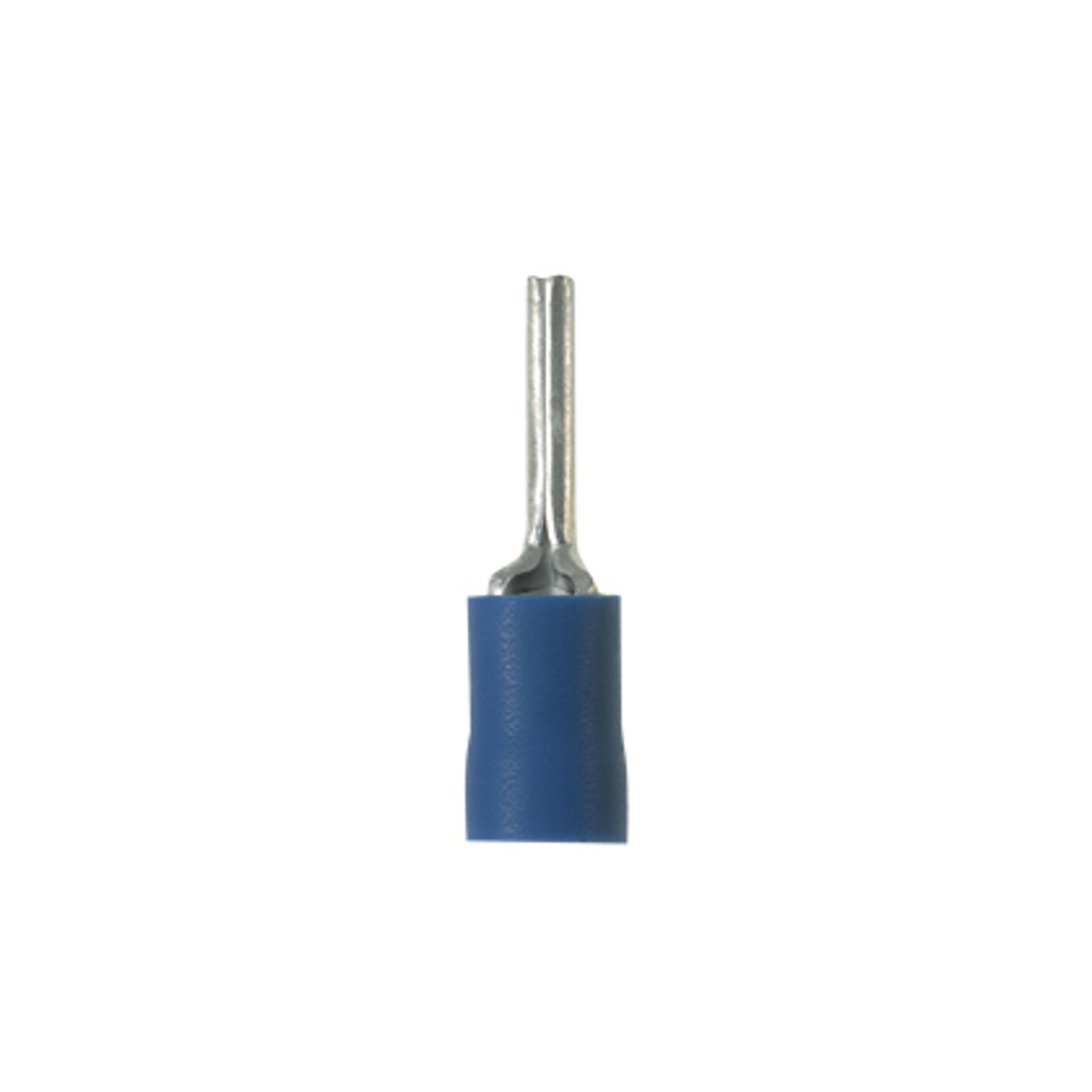

The PANDUIT PV14-P47-M is a vinyl insulated pin terminal. This Pan-Term® pin terminal features a standard connection and a pin shape enclosure. Constructed from copper with a tin-plated finish, it supports wire sizes from 16-14 AWG. It is suitable for applications requiring reliable and durable wire termination.

• Vinyl insulation for added safety
• Copper construction with tin-plated finish for efficient conductivity
• Suitable for 16-14 AWG wire sizes

Product Highlights

The PANDUIT PV14-P47-M pin terminal ensures secure and efficient electrical connections. It is ideal for various applications requiring reliable performance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV14-P47-M
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PV14-P47-M
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Blue
• Connection: Standard
• Enclosure: Pin shape
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL486A/B
• UPC: 074983812226
• GTIN: 00074983812226
• Item Type: Pin Terminal
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Wire Size: 16 - 14 AWG AWG
• Category: Connectors, Interconnects
• Terminals: Wire Pin Connectors
• Termination: Crimp
• Series: Pan-Term
• Features: Brazed Seam
• Packaging: Bulk
• Pin Diameter: Circular - 0.070" (1.78mm) Dia
• Contact Finish: Tin
• Length - Pin: 0.490" (12.45mm)
• Length - Overall: 0.970" (24.64mm)
• Length - Termination: 0.480" (12.19mm)
• Wire Gauge: 14-16 AWG (2.5~2.0mm ²)
• Base Product Number: PV14
• Insulation Diameter: 0.170" (4.32mm)
• ECCN: EAR99
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Conductor Size: 16-14 AWG
• Flammability Rating: UL94-V0
• Insulation Material: Vinyl
• Rated Voltage: 600V
• Lug Wire Size: 16-14 AWG
• Color Family: Blue
• Length: 0.97 in.
• Max. Temperature Rating: 221 °F
• Product Category: Crimp Terminals, Housings, Splices, & Lugs
• Pin Length: 12.4 mm, .49 in
• Barrel Type: Brazed
• SKU: PANPV14-P47-M
