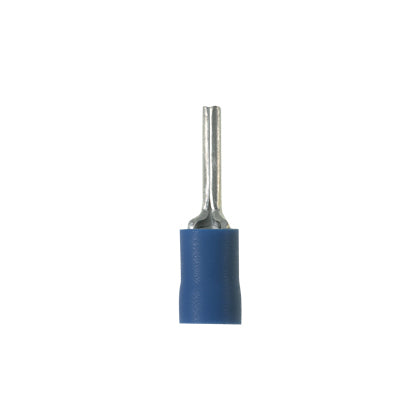

Panduit PV14-P47-C Vinyl Insulated Pin Terminal 16 to 14 AWG

Product Description

The Panduit PV14-P47-C is a pin terminal designed for use with 16 to 14 AWG wires. This vinyl insulated pin terminal ensures a secure electrical connection and is constructed to prevent wire damage during installation. It measures .49 inches in pin length and features a solid pin design that protects the wire from over-tightening.

• Vinyl insulation for effective protection
• UL rated up to 600 volts
• Brazed seam protects barrel from splitting

Product Highlights

Ideal for pin-type terminal blocks, this Panduit terminal supports reliable connections in various applications.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PV14-P47-C

Technical Specifications

• Voltage Rating: 600 VAC
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Size: 16 - 14 AWG
• Pin Length: .49 inches
• Pin Diameter: .07 inches
• Material: Copper
• Finish: Tin-Plated
• Standards: UL486A/B
