Panduit PV14-8RX-M Pan-Term Ring Terminal

Product Description

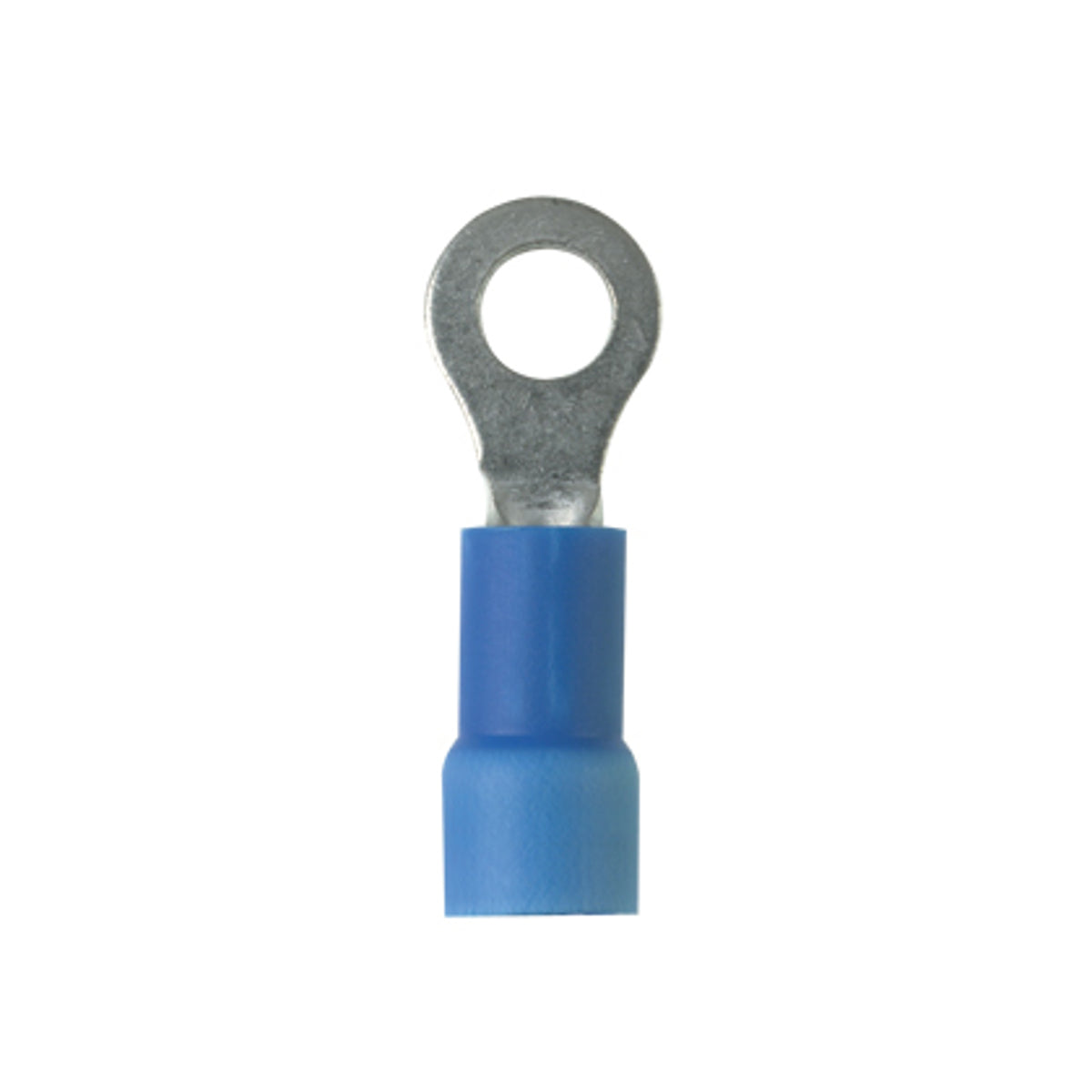

The PANDUIT PV14-8RX-M Pan-Term Ring Terminal connects wires to a single connection point. Constructed with vinyl insulation and expanded insulation for large wire O.D. Features internal barrel serrations to assure good wire contact and maximum tensile strength.

• Ring Terminals connect two or more wires to a single connection point and acts as a circuit protection device.
• Offer insulation support which helps to prevent wire damage in bending applications.
• Feature internal barrel serrations to assure good wire contact and maximum tensile strength.

Product Highlights

The PV14-8RX-M ring terminals are UL Listed and CSA certified with a maximum insulation temperature of 221°F (105°C).

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV14-8RX-M
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PV14-8RX-M
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Blue
• Connection: Expanded Entry
• Enclosure: Ring shape
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164, CSA Certified LR31212
• UPC: 074983801596
• GTIN: 00074983801596
• Item Type: Ring Terminal
• Size: #8
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Wire Size: #14 AWG
• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Wire Gauge: 14-16 AWG
• Series: Pan-Term
• Packaging: Bulk
• Features: Brazed Seam, Serrated Termination
• Part Status: Active
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 8 Stud
• Contact Finish: Tin
• Thickness: 0.032" (0.81mm)
• Insulation Diameter: 0.200" (5.08mm)
• Width - Outer Edges: 0.310" (7.87mm)
• Material - Insulation: Vinyl
• Length - Overall: 0.960" (24.38mm)
• Base Product Number: PV14
• Mounting Type: Free Hanging (In-Line)
• Type: Ring Tongue Terminal
• Body Orientation: Straight
• Stud Size (mm): 4.16
• Plating: Tin
• Maximum Voltage Rating: 600V
• Maximum Operating Temperature ( °C): 75
• Product Length (mm): 24.4
• Product Depth (mm): 7.9
• Mounting: Cable Mount
