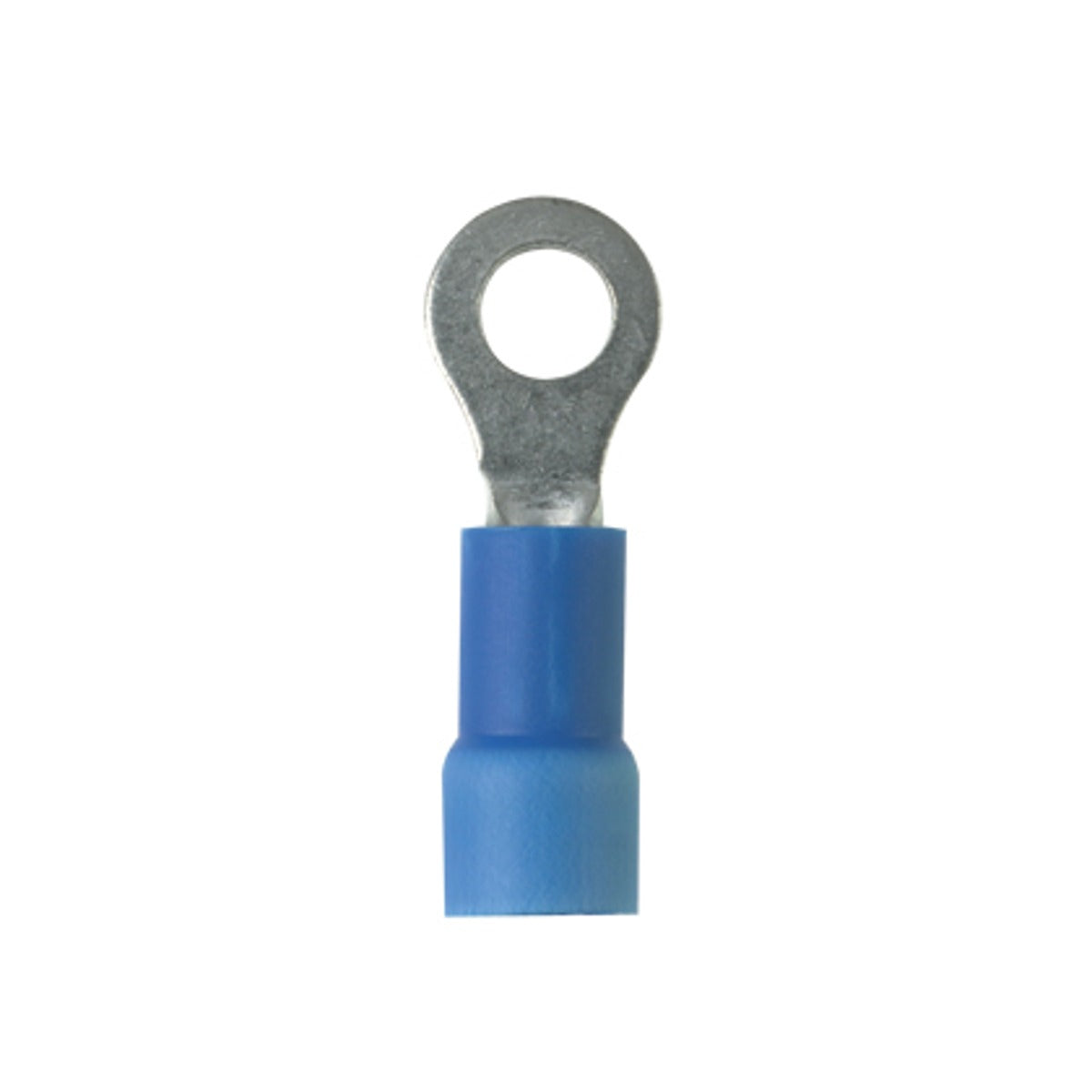

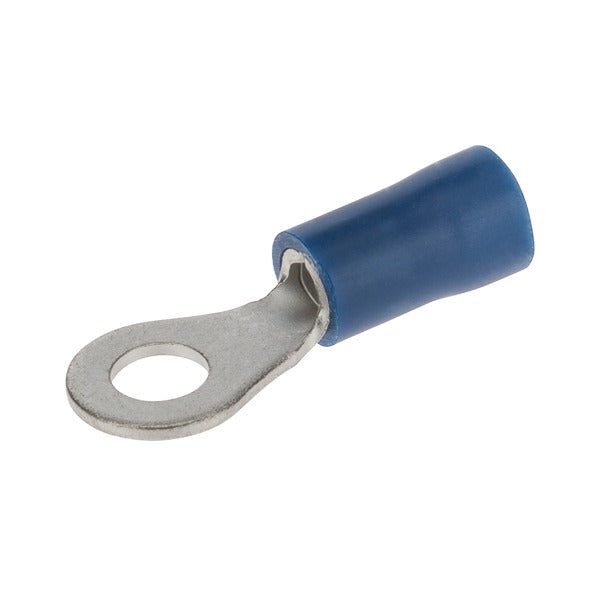

Panduit PV14-8RX-C Ring Terminal Vinyl 14-16 AWG #8 Stud Pack of 100

Product Description

Panduit PV14-8RX-C is a vinyl-insulated ring terminal for 14–16 AWG wire designed for #8 studs. The terminal uses a tin-plated copper contact with a brazed seam and internal serrations for crimp termination, and an expanded-entry vinyl insulation with insulation support. It measures 0.96 in overall length, is rated 600 V and 221°F (105°C), and is supplied in a pack of 100. Suitable as an insulated crimp terminal and ring connector for secure, vibration-resistant electrical connections.

• Tin-plated copper contact with brazed seam and internal serrations for crimp termination
• Vinyl insulation with expanded entry and insulation support; temperature 221°F (105°C), voltage 600 V
• Fits 14–16 AWG conductors for #8 stud; overall length 0.96 in; pack of 100

Product Highlights

Vinyl-insulated, tin-plated copper ring terminal with expanded-entry barrel and brazed seam; rated 600 V, 105°C; fits 14–16 AWG for #8 stud; pack of 100.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV14-8RX-C
• Country of Origin: Mexico
