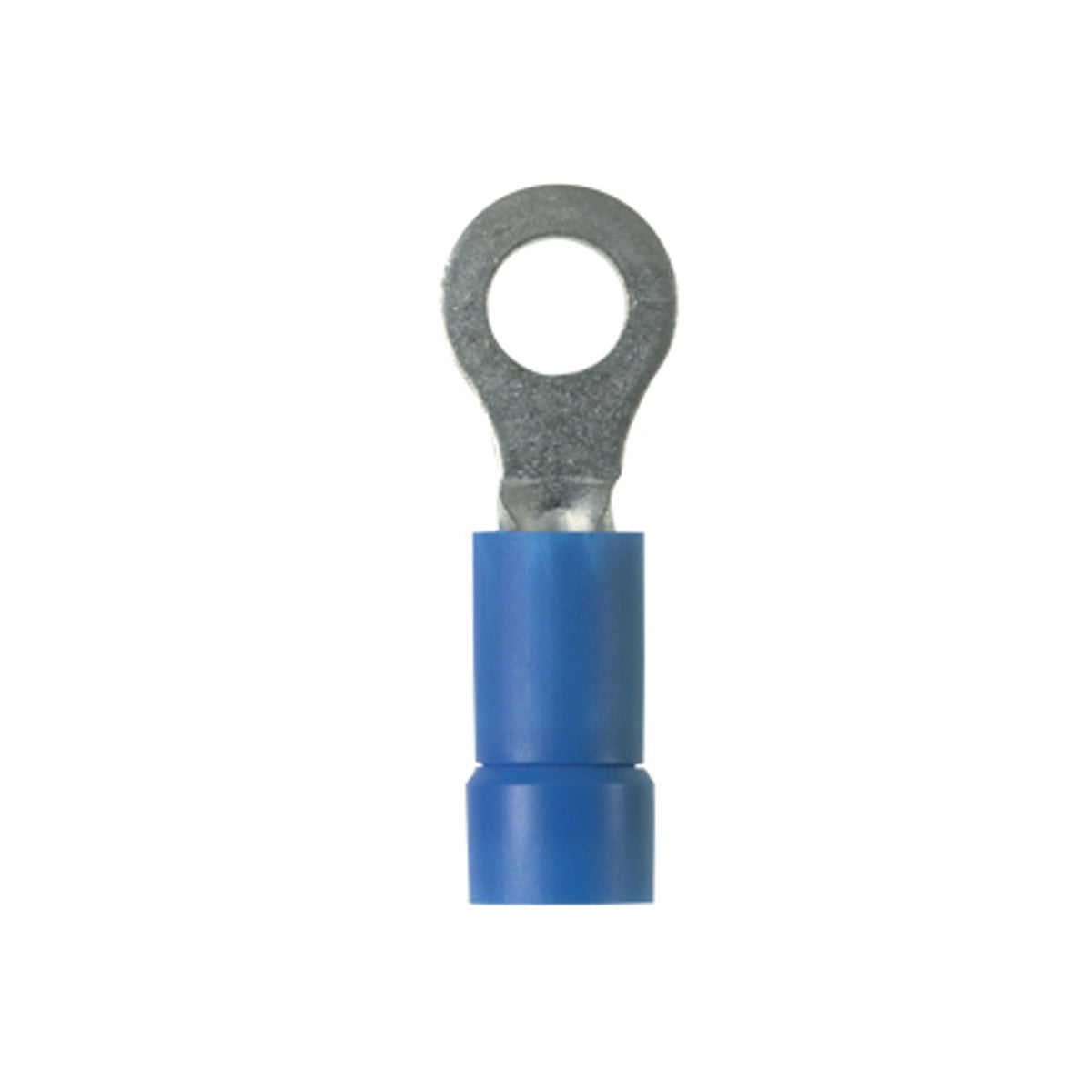

Panduit PV14-8R-M Vinyl Insulated Ring Terminal

Product Description

The Panduit PV14-8R-M is a vinyl insulated ring terminal. It features a brazed seam to protect the terminal barrel from splitting during crimping. Serrations within the barrel ensure reliable wire contact and strong tensile strength.

• Type: Ring Terminal
• Material: Copper, Insulation: Vinyl
• Voltage Rating: 600V, Temperature Rating: 221 Degrees Fahrenheit

Product Highlights

This ring terminal is ideal for solid or stranded conductors sized 14 AWG. The funnel entry design assists in securing connections effectively.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: PV14-8R-M

Technical Specifications

• Stud Size: #8
• Length: 0.92 inches
• Width: 0.31 inches
• Thickness: 0.03 inches
• Finish: Tin-Plated
• Connection Type: Funnel Entry
• Enclosure Type: Ring shape
• Wire Size: #14 AWG
