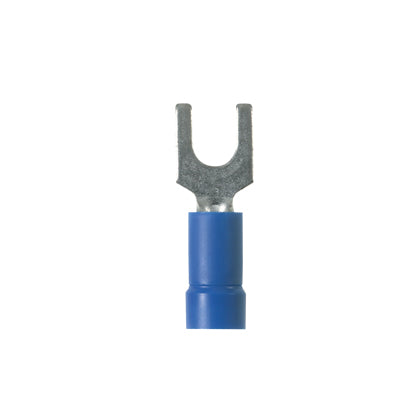

Panduit PV14-8F-C Vinyl Insulated Fork Terminal

Product Description

The Panduit PV14-8F-C is a vinyl insulated fork terminal designed for efficient electrical connections. This terminal features a brazed seam that protects the barrel from splitting during the crimping process, ensuring strong connections. The internal serrations enhance wire contact and maintain maximum tensile strength.

• Fork design allows quick installation without fastener removal.
• Insulation support prevents wire damage during bending.
• UL and CSA rated for safety and reliability.

Product Highlights

This fork terminal is suitable for applications requiring reliable electrical connections and easy installation.

Product Information

Standard Information

• UPC: 074983804085
• Manufacturer: Panduit

Technical Specifications

• Type: Insulated Fork Terminal
• Conductor Size: 16 to 14 AWG
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Material: Copper
• Color: Blue
• Finish: Tin Plated
• Insulation: Vinyl
