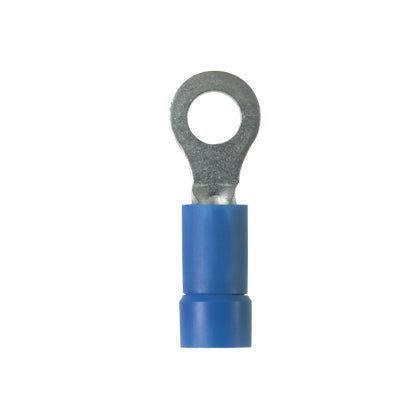

Panduit PV14-6R-C Vinyl Insulated Ring Terminal

Product Description

The Panduit PV14-6R-C is a vinyl insulated ring terminal designed for reliable electrical connections. This terminal features a brazed seam to prevent splitting during the crimping process. The internal barrel serrations ensure secure wire contact for optimal performance.

• Insulation support prevents wire damage in bending applications.
• Ring tongue design ensures a secure connection in high vibration environments.
• Rated for use up to 600 Volts per UL 486 standards.

Product Highlights

This terminal is ideal for electricians working in various environments, providing a strong and reliable connection in electrical circuits.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PV14-6R-C

Technical Specifications

• Wire Size: 14 AWG
• Stud Size: #6
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Material: Copper
• Insulation: Vinyl
• Finish: Tin-Plated
• Enclosure: Ring shape
