Panduit PV14-6FF-M Spade Term 14-16AWG #6

Product Description

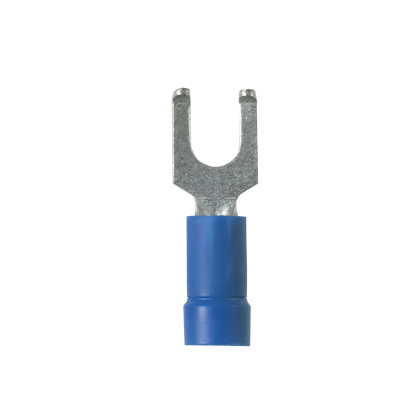

The PANDUIT PV14-6FF-M is a flanged fork terminal with vinyl insulation and a funnel entry, designed for easy wire insertion and secure connections. Suitable for 14-16 AWG wires and a #6 stud size. Constructed from high-quality copper with a tin-plated finish, it offers excellent conductivity and corrosion resistance. Ideal for various electrical projects.

• Brazed Seam
• Vinyl insulated
• Maximum operating temperature of 105°C (221°F)

Product Highlights

Flanged fork terminal ensures reliable electrical connections with excellent conductivity and corrosion resistance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV14-6FF-M
• Country of Origin: MEX

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Spade Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 14-16 AWG
• Series: PV-FF
• Insulation: PVC
• Packaging: Bulk
• Features: Brazed Seam
• Part Status: Active
• Color: Blue
• Terminal Type: Flanged
• Contact Finish: Tin
• Stud/Tab Size: 6 Stud
• Contact Material: Copper
• Width - Outer Edges: 0.280" (7.11mm)
• Insulation Diameter: 0.165" (4.19mm)
• Length - Overall: 0.880" (22.35mm)
• Material - Insulation: Vinyl
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PV14
• Product Category: Products
• Connectors: Crimp Terminals, Housings, Splices, & Lugs
• Manufacturer Part Number: Panduit PV14-6FF-M
• Maximum Operating Temperature: 105 °C, 221 °F
• Overall Length: .88 in, 22.4 mm
• Stud Size: #6
• Material: Copper
• Maximum Wire Size: 14 AWG
• Minimum Wire Size: 16 AWG
• Barrel Type: Funnel
• Finish: Tin Plated
• Product: Crimp Spade Terminals
• Fork Type: Flanged Fork
• SKU: PANPV14-6FF-M
• ARRA Compliant: Y
• Brand: Panduit ®
• Buy American Compliant: Y
• Catalog Number: PV14-6FF-M
• Conductor Size: 16 to 14 AWG
• Conductor Type: Solid/Stranded
• Connection: Funnel Entry
• Country of Origin: MEX
• Currency: USD
• Enclosure: Fork shape
• EU RoHS Indicator: Y
• Gross Volume UOM: CF
• Gross Volume UOM Metric: m3
• Gross Weight Per Pack: 2.3500 lb
• Gross Weight per Pack Metric: 1.07
• Gross Weight UOM Metric: kg
• Height: 2.20 in
• Height [Metric]: 5.5880 cm
• Insulation Material: Vinyl
• Length: 8.00 in
• Length [Metric]: 20.3200 cm
• Mounting: 5/16
• Returnable: Y
• Size: #6
• Specifications: 0.17 in Max Vinyl Insulation, Funnel Entry Barrel Configuration
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B
• Stock Status: NONSTOCK
• Temperature Rating: 221 °F
• Tongue Size: 0.28 in W
• Tongue Type: Flanged Fork
• Type: Ring Terminal
• UNSPSC: 39121409
• UPC 11: 07498346504
• UPC 12: 07498346504
• Voltage Rating: 600 V
• Width: 6.00 in
• Width [Metric]: 15.2400 cm
• Wire Size: #14 AWG
