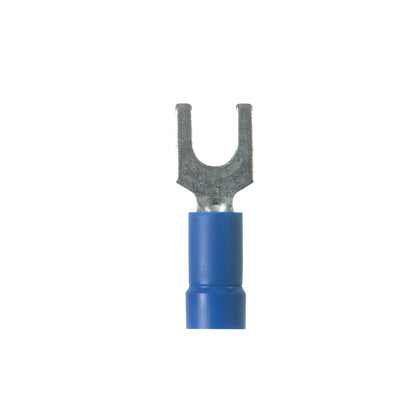

Panduit PV14-6F-C Pan-Term Fork Terminal Vinyl Insulated 14-16 AWG Pack 100

Product Description

The Panduit PV14-6F-C is a vinyl insulated fork terminal designed for use with 14-16 AWG wire. This terminal features a brazed seam that protects the barrel from splitting during the crimp process, ensuring reliable performance. Its internal barrel serrations provide secure wire contact, allowing for maximum tensile strength.

• Fork design allows for quick and easy installation.
• Insulation support prevents wire damage during bending.
• UL and CSA rated for use up to 600 V.

Product Highlights

Ideal for electrical applications, the PV14-6F-C ensures secure connections and reliable performance in various environments.

Product Information

Standard Information

• Type: Fork Terminal
• Brand: Panduit

Technical Specifications

• Catalog Number: PV14-6F-C
• Color: Blue
• Conductor Size: 14-16 AWG
• Stud Size: #6
• Material: Copper
• Voltage Rating: 600 V
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Insulation: Vinyl
• Finish: Tin Plated
