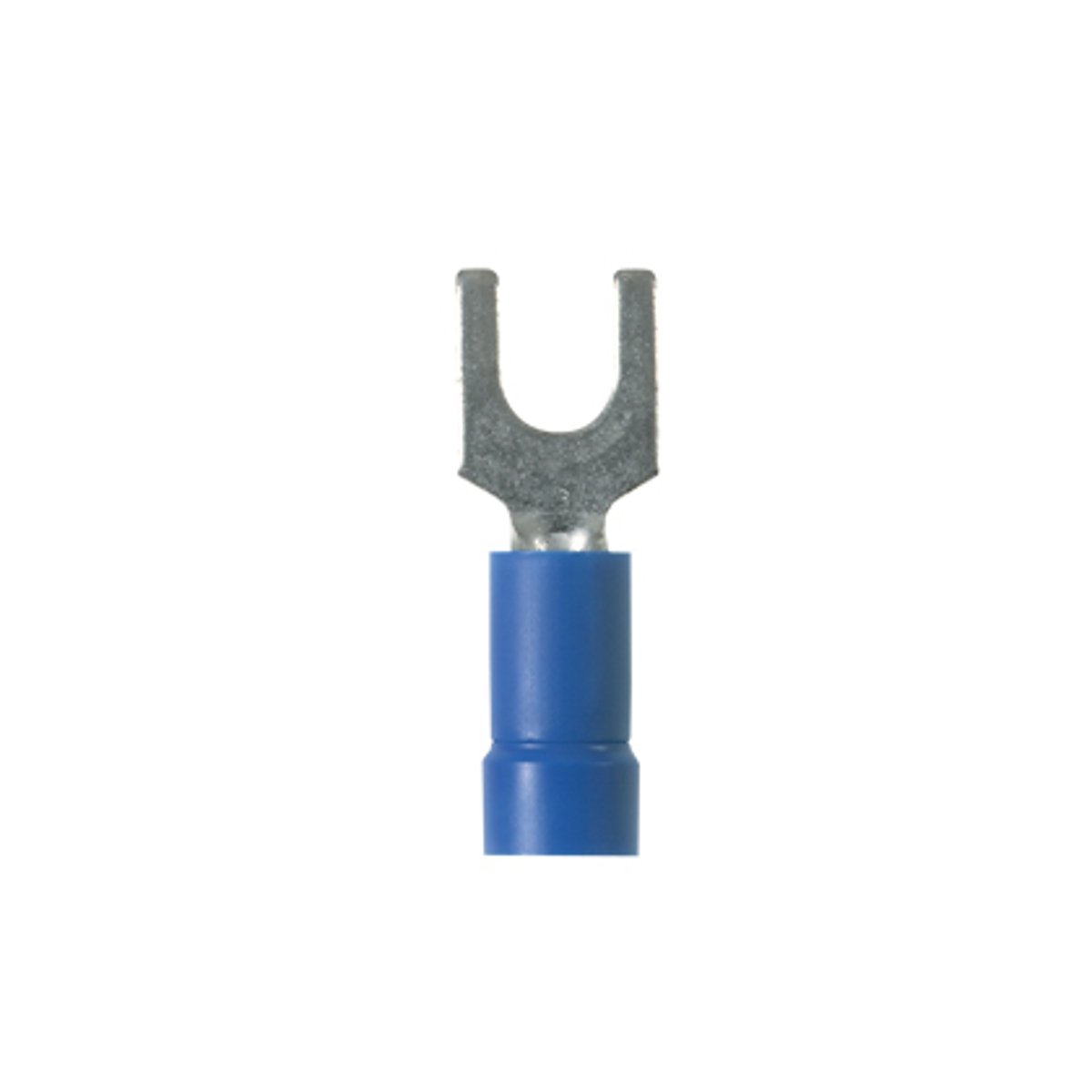

Panduit PV14-14F-C Fork Terminal, 600 VAC, 16-14 AWG, 1/4 Stud Size

Product Description

The Panduit PV14-14F-C fork terminal is a loose piece terminal designed for quick and reliable connections. This terminal accommodates wire sizes from sixteen to fourteen AWG and features a one-quarter inch stud size. The funnel entry design simplifies wire installation, making it suitable for fast assembly in various electrical applications.

• Fork design for easy installation
• Vinyl insulation for durability
• Rated for 600 VAC

Product Highlights

This terminal is manufactured from copper and is tin plated for enhanced conductivity and corrosion resistance.

Product Information

Standard Information

• UPC: 074983524921
• Voltage Rating: 600 VAC

Technical Specifications

• Catalog Number: PV14-14F-C
• Manufacturer: Panduit
• Conductor Size: #14
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Material: Copper
• Finish: Tin-Plated
• Insulation Type: Vinyl
• Stud Size: 1/4 inch
