Panduit PV14-10R-M Pan-Term Ring Terminal Power 14 AWG Replacement MPN

Product Description

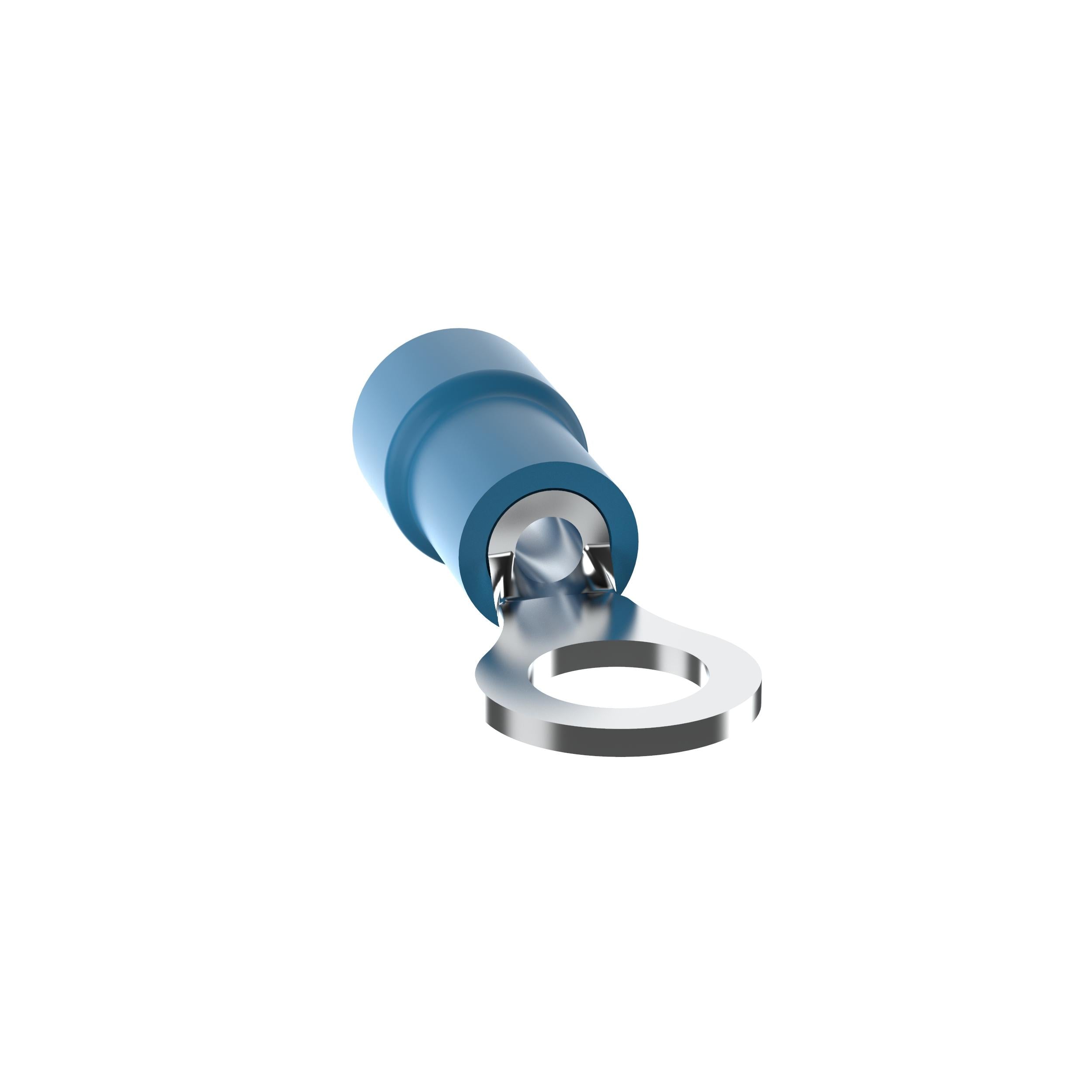

The Panduit PV14-10R-M is a vinyl insulated ring terminal. This terminal features brazed seams that help prevent barrel splitting during the crimping process. It is designed with internal barrel serrations to ensure a secure wire contact and maximum tensile strength. The extended barrel insulation provides additional protection and strain relief when crimped.

• Vinyl insulated, designed for 14 AWG conductors
• Rated for up to 600 volts, UL and CSA approved
• Ring tongue design for secure connections in high vibration applications

Product Highlights

This terminal is ideal for use in electrical connections where reliability is essential. It is compatible with various crimping tools and provides a robust connection in demanding environments.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PV14-10R-M

Technical Specifications

• Wire Size: 14 AWG
• Stud Size: #10
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Material: Copper
• Finish: Tin-Plated
• Color: Blue
• Type: Ring Terminal
• Barrel Type: Brazed Seam/Insulation Support/Internal Serration
• Enclosure Type: Ring Shape
