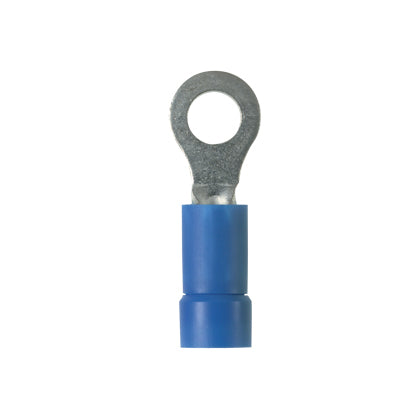

Panduit PV14-10R-C Vinyl Insulated Ring Terminal

Product Description

The Panduit PV14-10R-C is a vinyl insulated ring terminal designed for secure electrical connections. It features a brazed seam to prevent barrel splitting during crimping, ensuring reliable performance. Its internal serrations enhance wire contact and provide maximum tensile strength.

• Vinyl insulation protects wire from damage.
• Suitable for high vibration applications due to its ring tongue design.
• Rated for voltage up to six hundred volts per UL 486.

Product Highlights

This terminal is ideal for various electrical applications, ensuring robust connections where reliability is critical.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PV14-10R-C

Technical Specifications

• Type: Ring Terminal
• Material: Copper
• Connection Type: Funnel Entry
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Size: 14 AWG
• Color: Blue
• Finish: Tin-Plated
