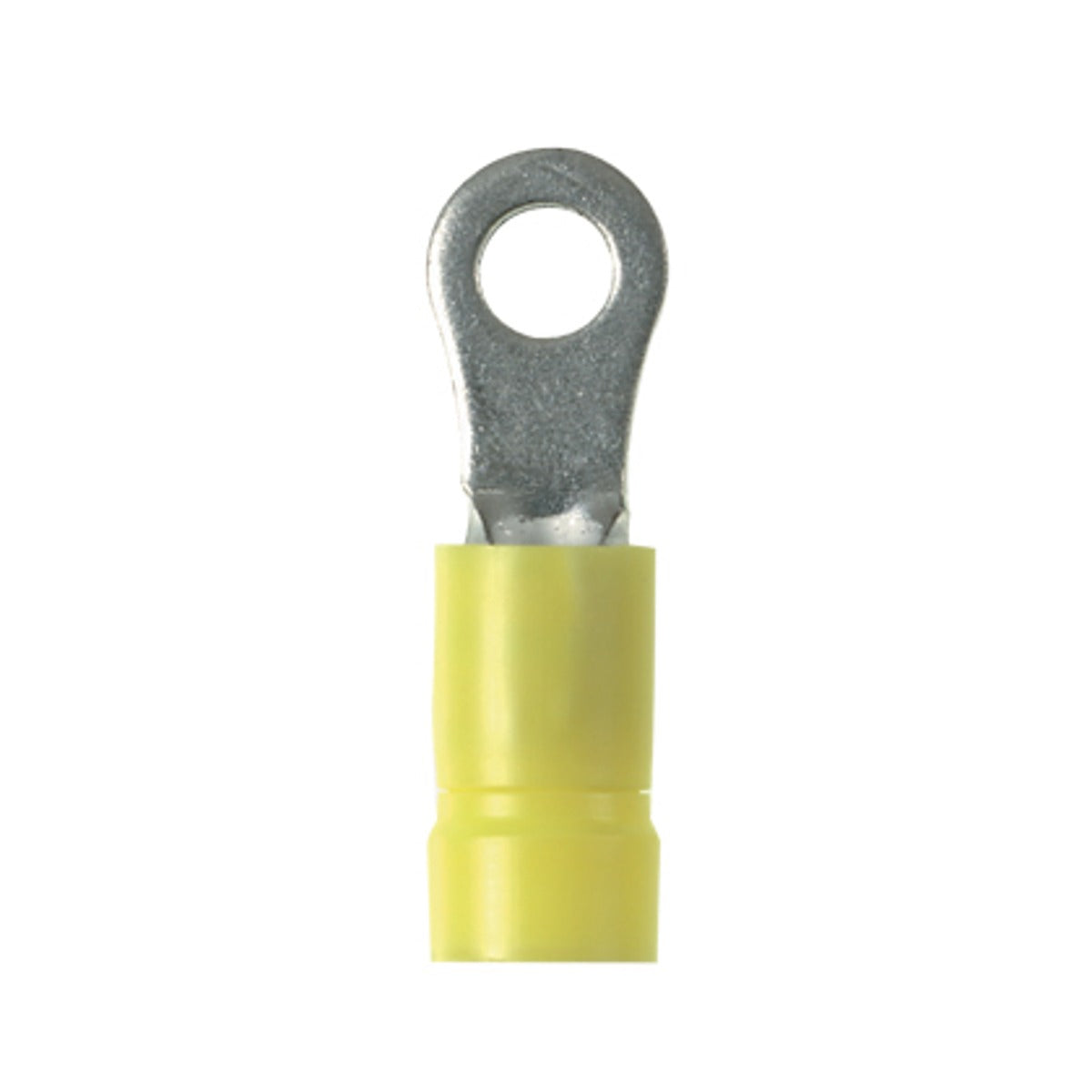

Panduit PV12-14HDR-L Ring Terminal Heavy Duty Vinyl (16-12 AWG / 1/4 in Stud / Pack of 50)

Product Description

Panduit PV12-14HDR-L is a heavy-duty vinyl insulated ring terminal for 16 to 12 AWG conductors with a 1/4 in stud. The terminal features a funnel-entry crimp barrel, tin-plated copper contact, brazed seam construction, and UL and CSA certifications for electrical terminations. It is rated to 600 V and 105 degrees C (221 degrees F) and is supplied in a standard factory pack of 50.

• Fits 16 to 12 AWG conductors with 1/4 in (6.35 mm) stud size; overall length 1.23 in (31.2 mm).
• Copper contact with tin-plated finish, brazed seam, and internal barrel serrations for improved wire contact.
• Vinyl insulation (insulation diameter 0.225 in) with funnel entry; rated 600 V and 105 degrees C; UL and CSA certified.

Product Highlights

Heavy-duty vinyl insulated ring terminal for 16-12 AWG, 1/4 in stud; tin-plated copper contact; 600 V, 105 C rating; UL/CSA certified; pack of 50.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV12-14HDR-L
• Country of Origin: Mexico
