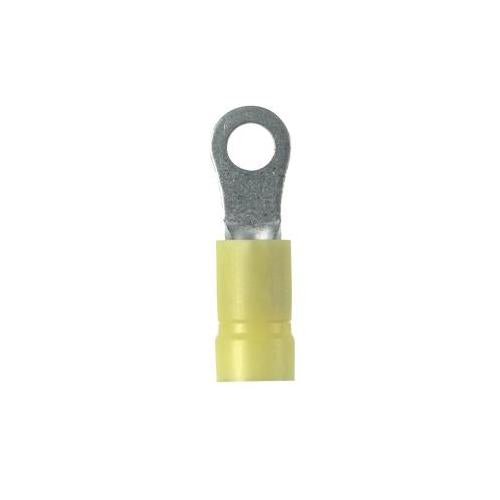

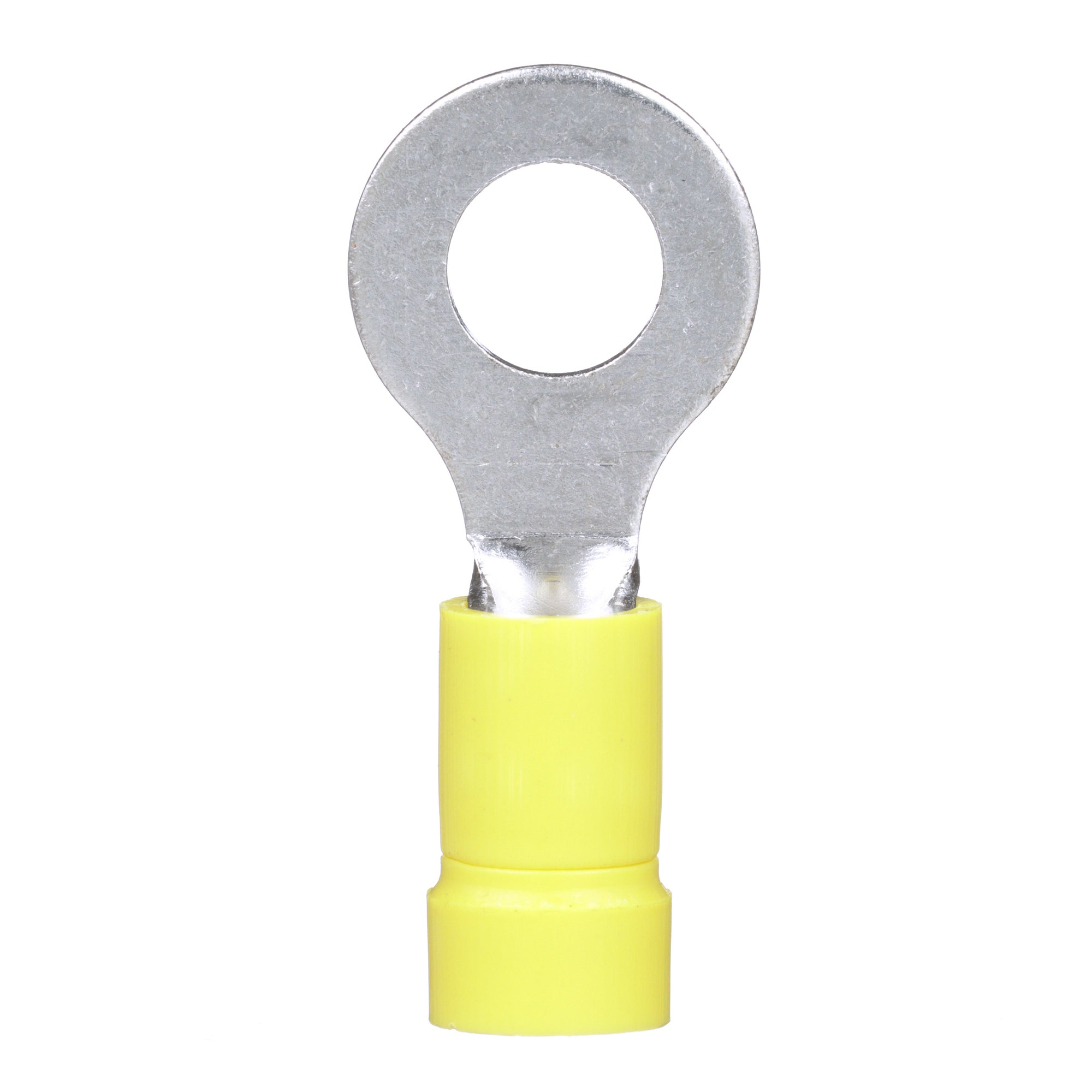

Panduit PV1014RD Pan-Term Vinyl Insulated Ring Terminal 12 to 10 AWG 1/4 Stud

Product Description

The Panduit PV10-14R-D is a vinyl insulated ring terminal, ideal for wiring connections. The terminal enhances reliability through a brazed seam that ensures strength and prevents splitting during crimping.

• Insulation support prevents wire damage in bending applications.
• Secure connection in high vibration environments.
• UL and CSA rated for up to six hundred volts.

Product Highlights

This ring terminal is designed to support solid and stranded conductors ranging from twelve to ten AWG. It features a funnel entry and internal serrations for maximum wire contact.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: PV10-14R-D

Technical Specifications

• Type: Type PV-R Loose Piece
• Material: Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Insulation: Vinyl
• Finish: Tin-Plated
• Stud Size: 1/4 in
• Conductor Size: 12 to 10 AWG
• Specifications: 0.225 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 0.38 in Clearance
