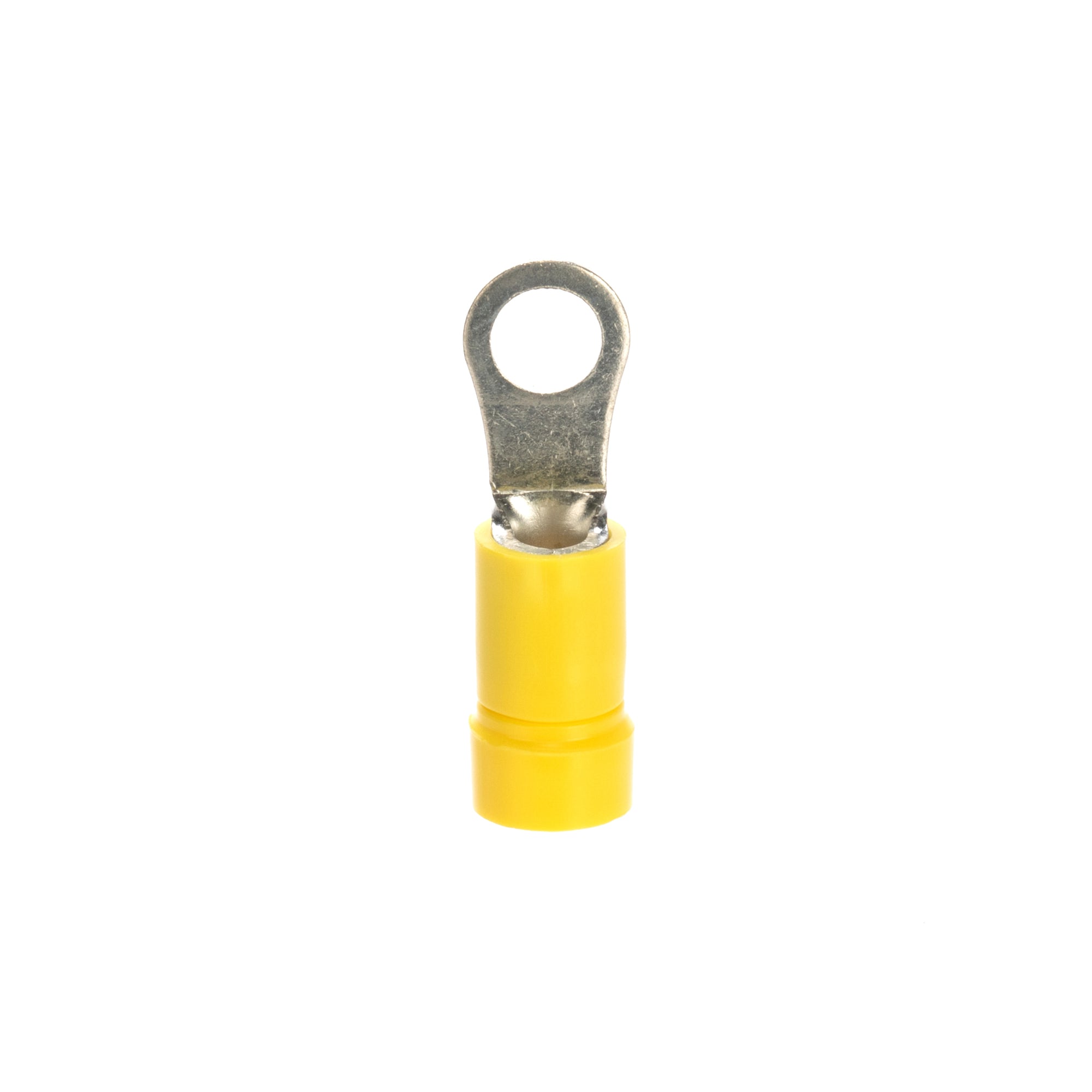

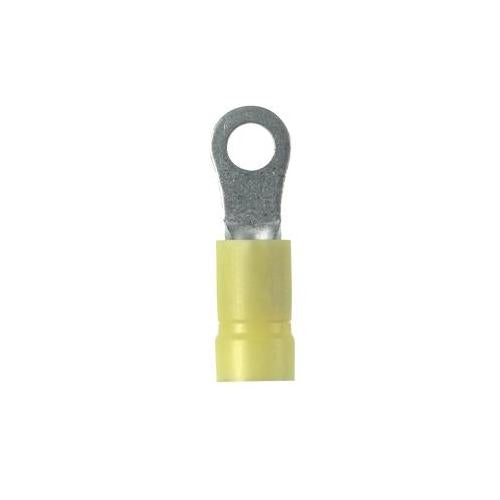

Panduit PV1010RD Vinyl Insulated Ring Terminal

Product Description

The Panduit PV10-10R-D is a vinyl insulated ring terminal designed for efficient electrical connections. This product is suitable for wires ranging from ten to twelve AWG and is compatible with #10 stud sizes. Its construction features a brazed seam that protects the terminal barrel from splitting during the crimping process. The internal barrel serrations provide secure wire contact, ensuring maximum tensile strength.

• Rated for up to six hundred volts per UL 486A
• Temperature rating of two hundred twenty-one degrees Fahrenheit
• Funnel entry for easy wire insertion

Product Highlights

The Panduit PV10-10R-D terminal provides reliable connections in high vibration applications, making it essential for electrical maintenance tasks.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: PV10-10R-D

Technical Specifications

• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Size: #10 AWG
• Material: Copper
• Insulation: Vinyl
• Connection Type: Funnel Entry
• Finish: Tin-Plated
• Stud Size: #10
