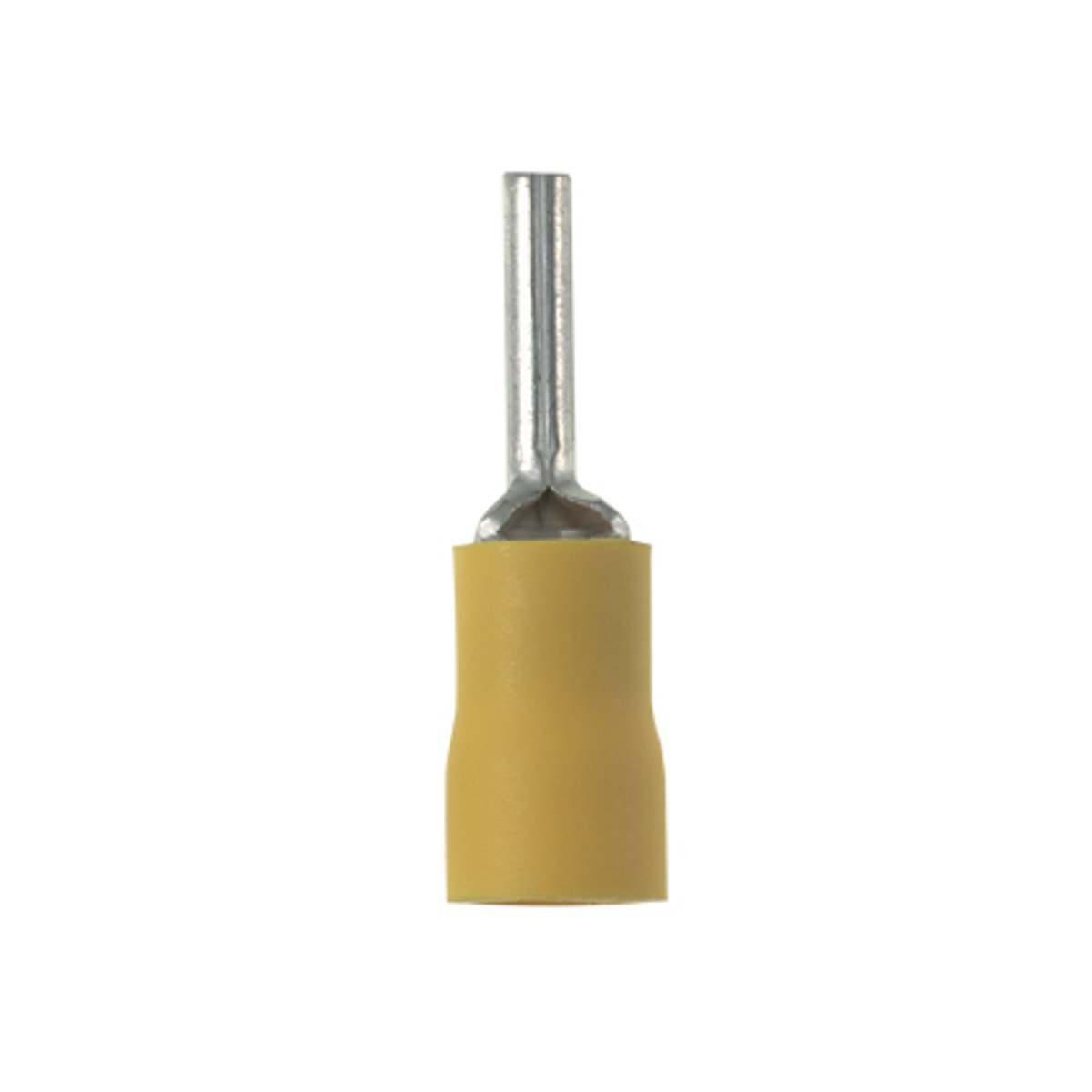

Panduit PV10-P55-LYY Pan-Term Pin Terminal, Yellow, Vinyl, 10-12 AWG, 14mm Pin L, PK50

Product Description

The Panduit PV10-P55-LYY is a vinyl insulated pin terminal designed for solid or stranded copper conductors with wire sizes ranging from 12 to 10 AWG. It features vinyl insulation and is rated for up to 600 VAC. The pin has a 0.1 inch diameter and a 0.55 inch length, with an overall length of 1.1 inches.

• Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
• Insulation support helps to prevent wire damage in bending applications
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

The Panduit PV10-P55-LYY pin terminal ensures reliable electrical connections with its solid pin design and internal barrel serrations.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV10-P55-LYY
• Country of Origin: Indonesia

Technical Specifications

• Catalog Number: PV10-P55-LYY
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Indonesia
• Made in USA: No
• Color: Yellow
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• UPC: 613056757912
• GTIN: 00613056757912
• Item Type: Pin Terminal
• Wire Size: 10-12 AWG
• Conductor Size: 12 to 10 AWG
• Conductor Type: Solid/Stranded Copper
• Overall Length: 1.1 in
• Pin Diameter: Circular - 0.100" (2.54mm) Dia
• Pin Length: 0.55 in
• Standards/Approvals: ARRA Compliant|RoHS Compliant|UL Listed|Buy American Act Compliant
• Temperature Rating: 221 deg F
• Voltage Rating: 600 VAC
• Seam: Brazed
• Max. Temp.: 221 Degrees F
• For Use With: CT-100, CT-1550, CT-1551, CT-2300 (CD-550), CT-2500 (CT-2550CH), UP14ZLW (CD-550)
• Insulation Dia: 0.25 in
• Insulation Type: Vinyl
• Connection Material: Copper
• Category: Connectors, Interconnects
• Terminals: Wire Pin Connectors
• Insulation Diameter: 0.250" (6.35mm)
• Series: Pan-Term
• Termination: Crimp
• Packaging: Bulk
• Features: Brazed Seam
• Part Status: Active
• Contact Material: Copper
• Length - Pin: 0.550" (13.97mm)
• Contact Finish: Tin
• Length - Overall: 1.100" (27.94mm)
• Material - Insulation: Vinyl
• Base Product Number: PV10
