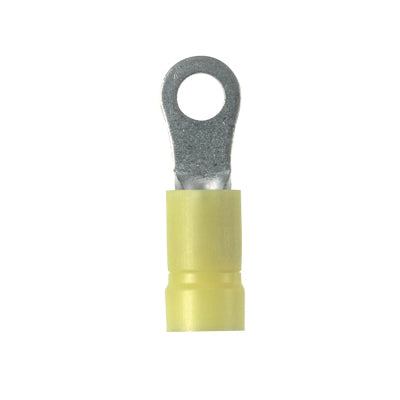

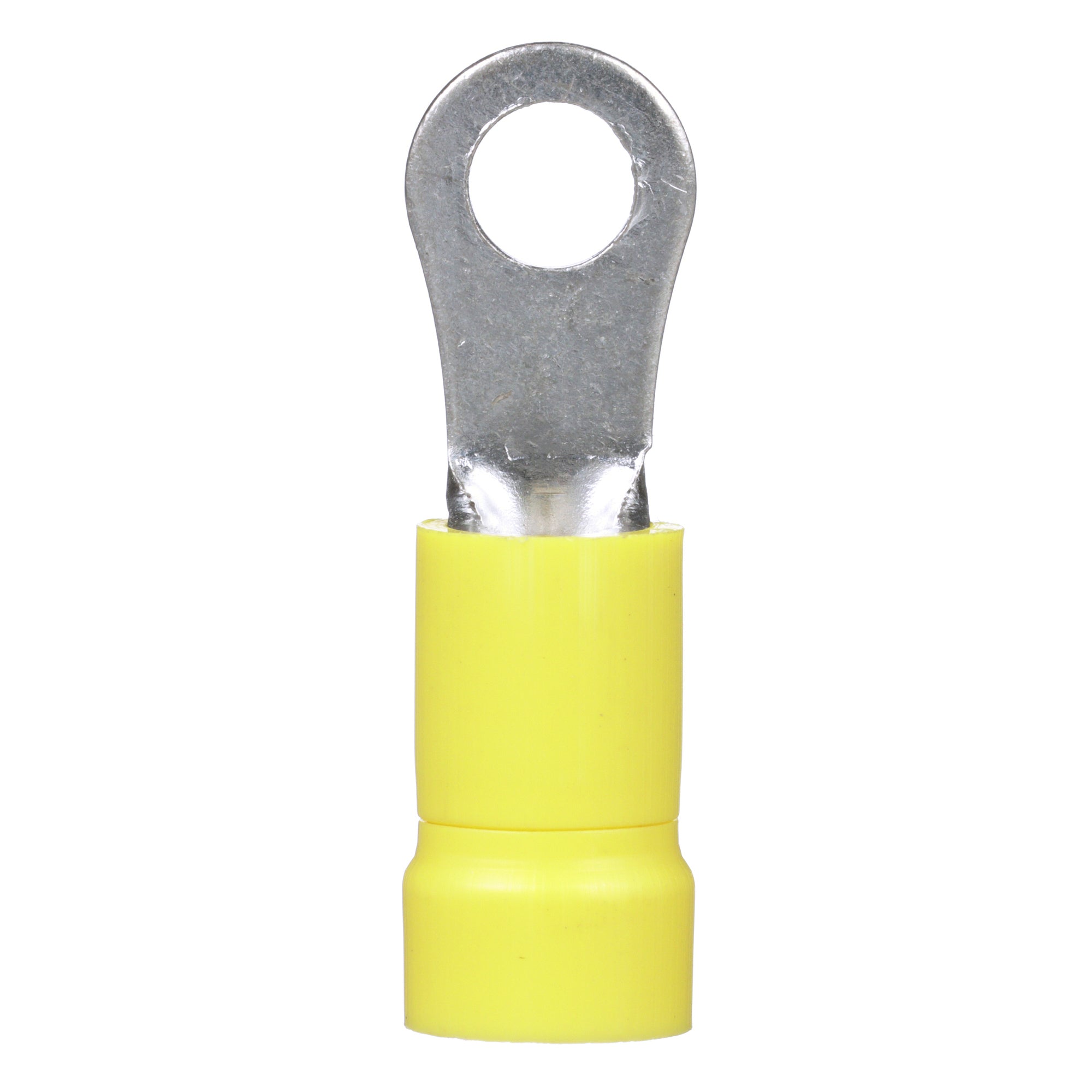

Panduit PV10-8R-L Vinyl Insulated Ring Terminal 12-10 AWG #8 Stud

Product Description

The Panduit PV10-8R-L is a vinyl insulated ring terminal designed for use with twelve to ten AWG wire sizes and accommodates an #8 stud. This terminal ensures secure connections in various applications, particularly in areas with high vibration. It features a funnel entry for ease of installation.

• Insulation support to prevent wire damage
• Secure connection in high vibration environments
• Brazed seam to avoid barrel splitting during crimping

Product Highlights

The Panduit PV10-8R-L provides robust performance with its internal barrel serrations that enhance wire contact and tensile strength. It is UL and CSA rated for applications up to 600 volts.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PV10-8R-L

Technical Specifications

• Type: Ring Terminal
• Material: Copper
• Color: Yellow
• Stud Size: #8
• Voltage Rating: 600 VAC
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Insulation: Vinyl
• Finish: Tin Plated
