Product Description

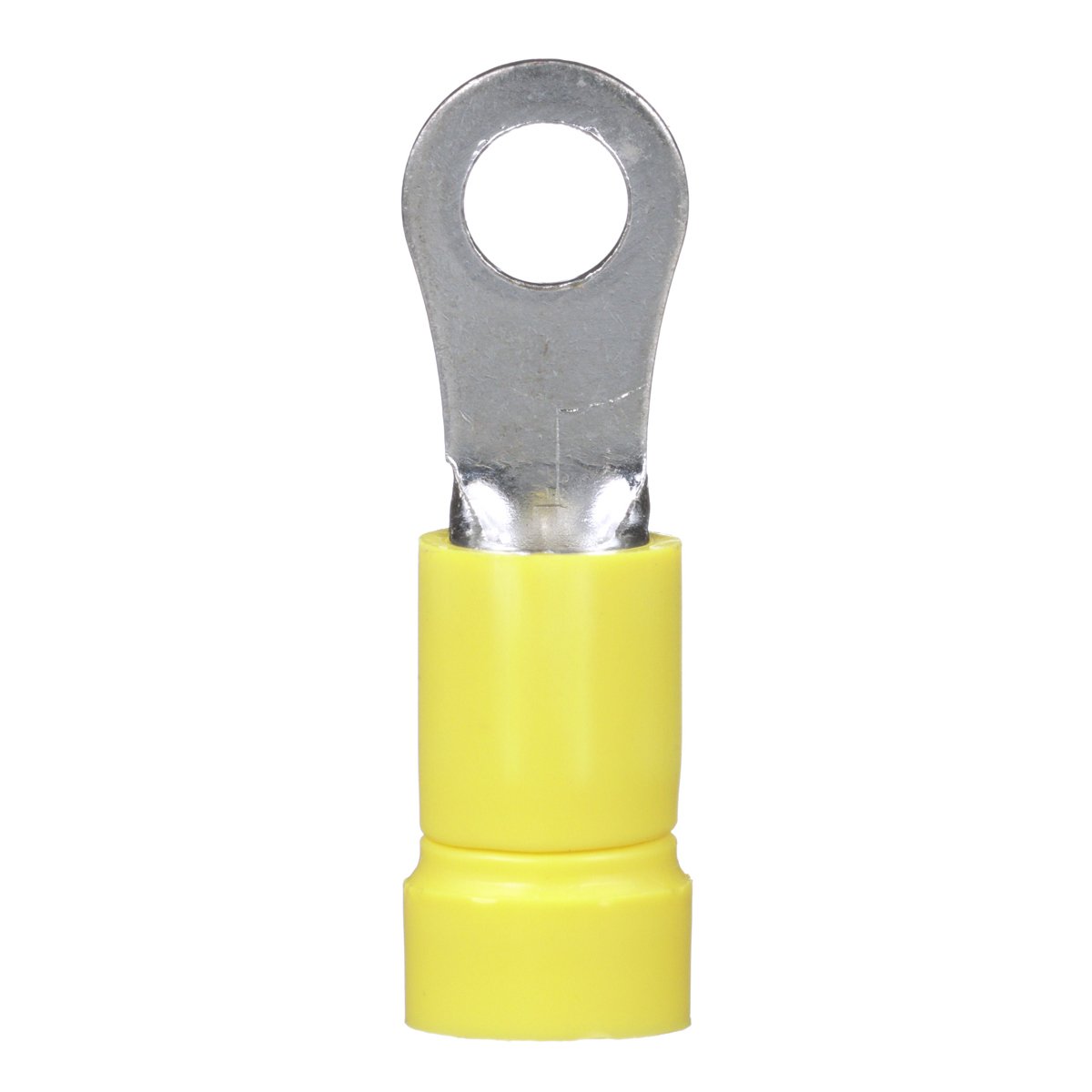

The Panduit PV10-8R-D is a ring terminal for wire connections. It is designed for wires of size 10 to 12 AWG. This terminal has a funnel entry for easy installation. The terminal is vinyl insulated, providing safety and durability.
- Compatible with 10 to 12 AWG wire sizes
- Vinyl insulation protects against wear
- Funnel entry design aids in secure connections
Product Highlights
This terminal ensures reliable electrical connections in various applications, including automotive and industrial sectors.
Product Information
Standard Information
-
Manufacturer: Panduit
-
Catalog Number: PV10-8R-D
Technical Specifications
-
Voltage Rating: 600 VAC
-
Wire Size: 10 to 12 AWG
-
Stud Size: #8
-
Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
-
Material: Copper
-
Insulation: Vinyl
-
Country of Origin: Mexico
-
Standard: cULus Listed 587H E52164, CSA Certified LR31212
