Panduit PV10-8FX-L Spade Term 10-12AWG #8

Product Description

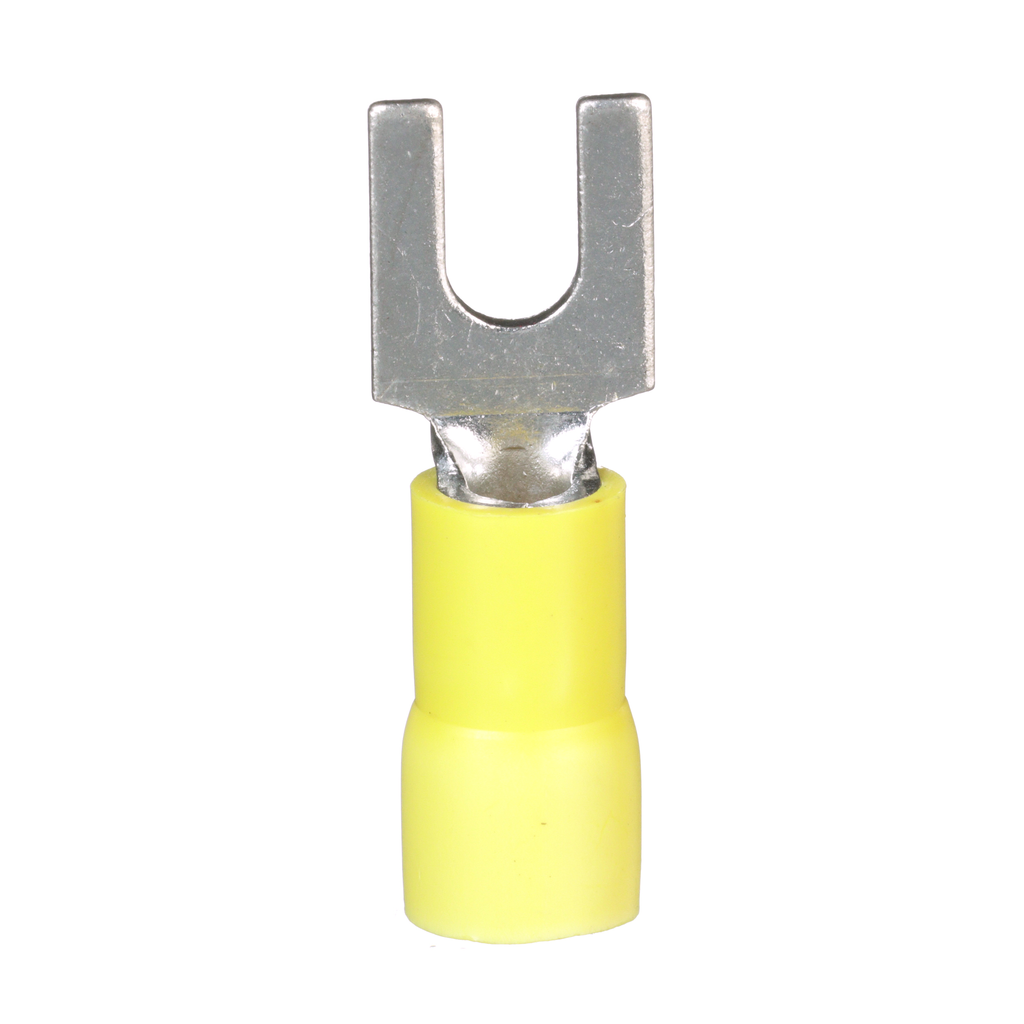

The PANDUIT PV10-8FX-L Pan-Term® terminals are designed for fast assembly and reliable performance. This spade terminal connector is suitable for crimping 10-12 AWG wires. It features a brazed seam and serrated termination for a secure connection. It is made of copper with tin plating and yellow vinyl insulation.

• Brazed Seam
• Serrated Termination
• Fork design provides for fast and easy installations, without the need to remove fastener

Product Highlights

The PANDUIT PV10-8FX-L spade terminal ensures a reliable connection with its serrated termination and brazed seam, suitable for 10-12 AWG wires.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV10-8FX-L
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Spade Connectors
• Wire Gauge: 10-12 AWG
• Manufacturer: Panduit Corp
• Insulation: Insulated
• Series: Pan-Term ®
• Features: Brazed Seam, Serrated Termination
• Packaging: Bulk
• Color: Yellow
• Part Status: Obsolete
• Contact Finish: Tin
• Terminal Type: Standard
• Contact Material: Copper
• Stud/Tab Size: 8 Stud
• Insulation Diameter: 0.250" (6.35mm)
• Width - Outer Edges: 0.370" (9.40mm)
• Material - Insulation: Vinyl
• Length - Overall: 1.110" (28.19mm)
• Tongue Inside Opening: 0.170" (4.32mm)
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PV10
• Termination: Crimp
• Conductor Type: Copper Stranded
• Finish: Tin Plated
• Stud Size: #8
• Temperature Rating: 221 deg F
• Tongue Size: 0.37 in W x 0.04 in THK
• Tongue Type: Fork
• Type: Loose Piece
• Voltage Rating: 600 VAC
• Conductor Size: #10
• Length: 1.11 in
• Barrel Type: Brazed Seam/Funnel Entry
• Material: Copper
• Barrel Length: 0.55 in
• Max Operating Temperature: 105 degrees C
• Standard: CSA,E2186,UL
• TC Connection: Funnel Entry
• Wire Size: 12-10 AWG
• Brand: Panduit Corp.
• Sub Brand: Pan-Term ®
• Product Type: Terminals
• UNSPSC: 39121409
• Overall Length: 1.11 in
• Width: 9.4 mm
• Enclosure: Fork shape
