Panduit PV10-8F-L Splice Connector, 1 x Fork Terminal, 50

Product Description

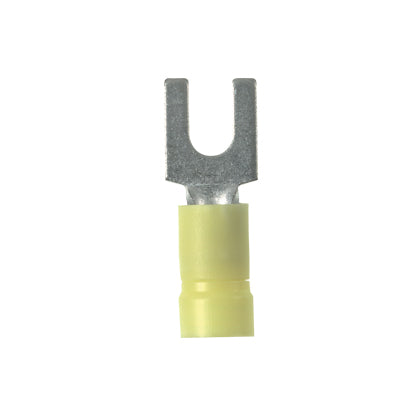

Panduit PV10-8F-L is a vinyl insulated fork terminal designed for optimal performance in wire connections. This terminal supports wire sizes from twelve to ten AWG and fits a #8 stud. It features a brazed seam that prevents the barrel from splitting during crimping, ensuring reliability and safety in electrical applications.

• Vinyl insulated for improved safety.
• Brazed seam for durability.
• Internal serrations for strong wire contact.

Product Highlights

The Panduit PV10-8F-L is engineered for quick and reliable installation, making it suitable for a variety of electrical applications.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: PV10-8F-L

Technical Specifications

• Material: Copper
• Insulation: Vinyl
• Color: Yellow
• Connection Type: Funnel
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600 V
• Packaged Quantity: 50
• Diameter: 0.225 inches
