Product Description

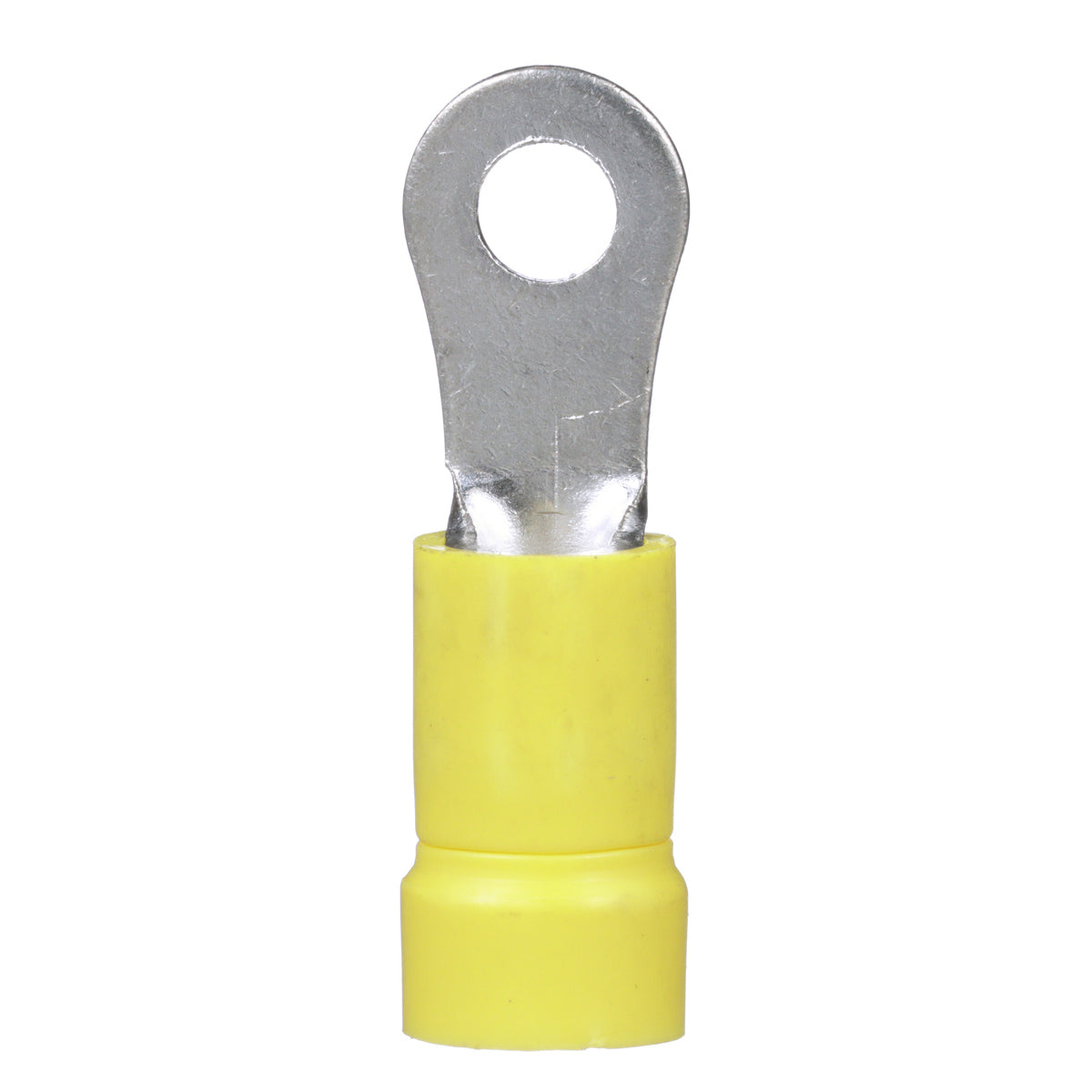

Panduit PV10-6R-L is a funnel entry ring terminal designed for solid or stranded copper wire from twelve to ten American Wire Gauge (AWG). It features a #6 stud size and is constructed with a vinyl-insulated barrel, ensuring electrical and thermal insulation.
- Compatible with copper wire sizes of #12 to #10 AWG
- Rated for a maximum voltage of 600 volts
- Temperature rated to withstand up to 221 degrees Fahrenheit
Product Highlights
This terminal is suitable for industrial and automotive applications, particularly in high-vibration environments.
Product Information
Standard Information
-
Manufacturer: Panduit
-
MPN: PV10-6R-L
Technical Specifications
-
Type: Ring Terminal
-
Wire Size: #10 AWG
-
Stud Size: #6 (M3.5)
-
Insulation: Vinyl
-
Body Material: Tin-Plated Copper
-
Finish: Tin-Plated
-
Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
-
Voltage Rating: 600
