Panduit PV10-6LF-L Pan-Term Locking Fork Terminal #6

Product Description

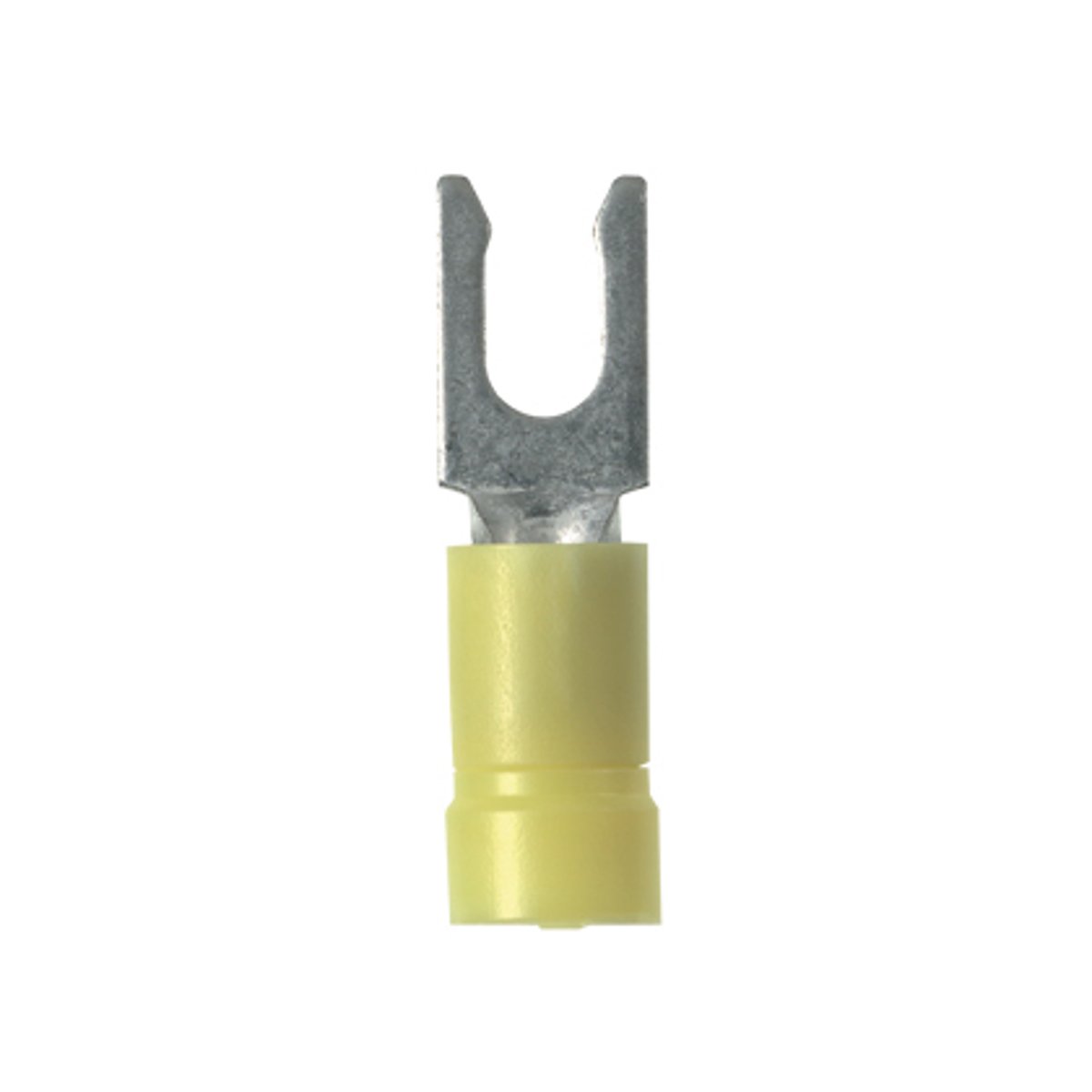

The PANDUIT PV10-6LF-L Pan-Term locking fork terminal features a vinyl insulated, funnel entry, and butted seam design. Designed for 12-10 AWG wire and a #6 stud size. This terminal is UL Listed and CSA Certified. It ensures secure and reliable connections in various electrical applications.

• Vinyl insulated for electrical safety
• Funnel entry for easy wire insertion
• Butted seam construction

Product Highlights

The PANDUIT PV10-6LF-L locking fork terminal provides secure and insulated connections for electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV10-6LF-L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PV10-6LF-L
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Yellow
• Connection: Funnel Entry
• Enclosure: Fork shape
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• UPC: 074983808120
• GTIN: 00074983808120
• Item Type: Ring Terminal
• Size: #6
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600 V
• Wire Size: #10 AWG
• Category: Connectors, Interconnects
• Terminals: Spade Connectors
• Wire Gauge: 10-12 AWG
• Series: Pan-Term
• Features: Serrated Termination
• Packaging: Bulk
• Contact Finish: Tin
• Contact Material: Copper
• Stud/Tab Size: 6 Stud
• Insulation Diameter: 0.225" (5.72mm)
• Width - Outer Edges: 0.300" (7.62mm)
• Material - Insulation: Vinyl
• Length - Overall: 1.030" (26.16mm)
• Tongue Inside Opening: 0.140" (3.56mm)
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PV10
• Termination: Crimp
• Manufacturer Part Number: PV10-6LF-L
• Packaged Quantity: 50
• Product Name: Terminal Connector
• Product Type: Terminal Connector
• American Wire Gauge: 10AWG
• Connector Plating: Tin
• Width: 0.3"
• Diameter: 0.23"
• Length: 1"
• Volts AC: 600
• Allowable Gauge Range: 12 - 10
