Product Description

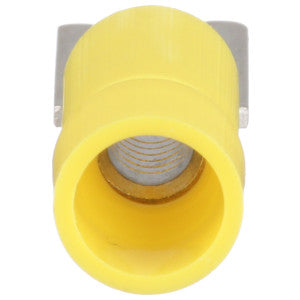

The PANDUIT PV10-6F-L Pan-Term® terminal is a vinyl insulated, fork terminal. It is designed for fast, consistent installation and lasting reliability. Features include a brazed seam that protects the terminal barrel from splitting during the crimp process and barrel serrations that assure good wire contact.
- Brazed seam protects terminal barrel from splitting during crimping.
- Barrel serrations assure good wire contact and maximum tensile strength.
- Fork terminals with a narrow tongue are ideal for high-density applications.
Product Highlights
The PANDUIT PV10-6F-L terminal ensures a reliable connection with its durable construction and thoughtful design, suitable for various electrical applications.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PV10-6F-L
-
Country of Origin: Mexico
Technical Specifications
-
Brand: PANDUIT
-
MPN: PV10-6F-L
-
Category: Connectors, Interconnects
-
Terminals: Spade Connectors
-
Wire Gauge: 10-12 AWG
-
Manufacturer: Panduit Corp
-
Insulation: Insulated
-
Series: Pan-Term
PV10 Series
-
Features: Brazed Seam, Barrel
-
Packaging: 50 per Package
-
Color: Yellow
-
Part Status: Active
-
Contact Finish: Tin
-
Terminal Type: Standard
-
Contact Material: Copper
-
Stud Size: #6 (M3.5) in
-
Insulation Diameter: 0.225 "
-
Width - Outer Edges: 0.310" (7.87mm)
-
Material - Insulation: Vinyl
-
Length - Overall: 1.01 in
-
Tongue Inside Opening: 0.140" (3.56mm)
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Crimp
-
ECCN: EAR99
-
Country of Origin: MX - Mexico
-
UNSPSC: 39121409
-
Finish: Tin-Plated
-
Standard: UL Listed 587H E52164; CSA Certified LR31212
-
Material: Copper
-
Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
-
Conductor Size: 14-10 AWG
-
Flammability Rating: UL94V-0
-
Outer Diameter: 0.23 in
-
Rated Voltage: 600V
-
Lug Wire Size: 14-10 AWG
-
Color Family: Yellow
-
Length: 1.01 in.
-
Width: 0.31 in.
-
Max. Temperature Rating: 221°F
-
Barrel Length: 0.41 in
-
Barrel Type: Funnel
-
Color Coding: Yellow
-
Enclosure: Fork shape
-
Insulation Material: PVC
-
Max Operating Temperature: 105 degrees C
-
Tc Connection: Funnel
-
Temperature Rating: 221 degrees F
-
Tongue Thickness: 0.04 in
-
Tongue Width: 0.31 in
-
Type: Loose-Piece
-
Voltage: 600 Volt
-
Wire Size: 10-14 AWG
-
Overall Length: 1.01 in
-
Overall Width: 0.31 in
-
Package Quantity: 50
-
Unit of Measure: PK
-
UPC Code: 074983804368
-
Angle: straight Degree(s)
-
Contact Plating: Tin
