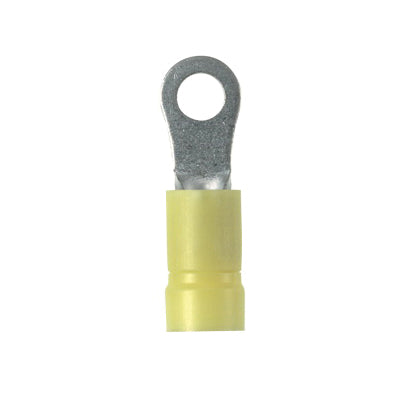

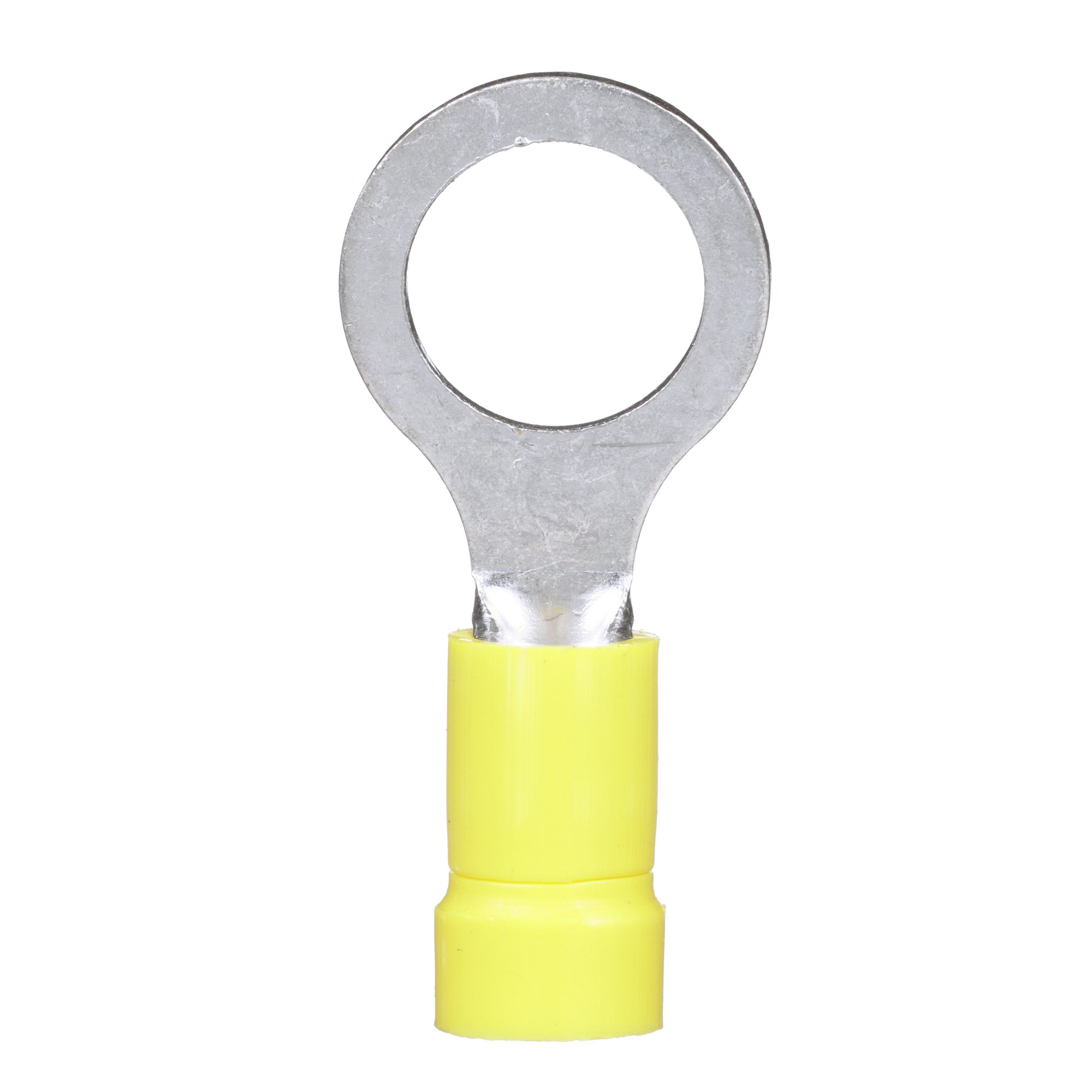

Panduit PV10-38R-D Ring Terminal Vinyl 12-10AWG 3/8IN

Product Description

Panduit is known for reliable electrical components. The PV10-38R-D ring terminal is designed for solid or stranded conductors, suitable for twelve to ten AWG wire sizes. This terminal features a three-eighth inch stud size and is vinyl insulated for safety and durability.

• Provides insulation support to prevent wire damage
• Ring tongue design offers secure connection in high vibration settings
• Brazed seam protects the terminal barrel from splitting during crimping

Product Highlights

This ring terminal is UL and CSA rated up to six hundred volts. It is ideal for various electrical applications requiring a robust and secure connection.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: PV10-38R-D

Technical Specifications

• Type: Copper - Other
• UNSPSC Code: 39121400
• Conductor Size: 10 AWG
• Stud Size: 3/8 inch
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Material: Copper
• Insulation: Vinyl
