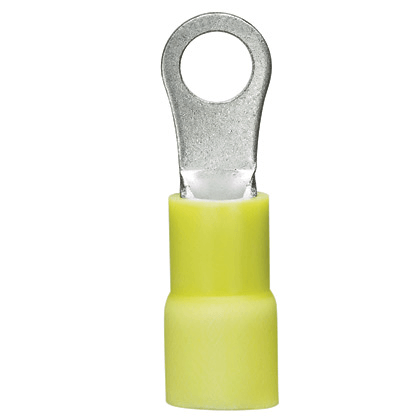

Panduit PV10-14RX-L Ring Terminal 10-12AWG 1/4 Stud

Product Description

The PANDUIT PV10-14RX-L is a ring terminal designed for 10-12 AWG wires and a 1/4" stud size. This circular ring connector features a crimp termination and is insulated with vinyl. It has a brazed seam and serrated termination for secure connections. Suitable for various electrical applications.

• Brazed Seam
• Serrated Termination
• Insulated with Vinyl

Product Highlights

Ring terminal connector with crimp termination, vinyl insulation, and serrated termination.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV10-14RX-L
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 10-12 AWG
• Series: Pan-Term
• Insulation: Insulated
• Packaging: Bulk
• Features: Brazed Seam, Serrated Termination
• Part Status: Active
• Color: Yellow
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 1/4 Stud
• Contact Finish: Tin
• Thickness: 0.040" (1.02mm)
• Insulation Diameter: 0.250" (6.35mm)
• Width - Outer Edges: 0.520" (13.21mm)
• Material - Insulation: Vinyl
• Length - Overall: 1.290" (32.77mm)
• Base Product Number: PV10
• Mounting Type: Free Hanging (In-Line)
• RoHS Status: ROHS3 Compliant
• Finish: Tin-Plated
• Standard: UL Listed 587H E52164, CSA Certified LR31212
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Conductor Size: 12-10 AWG
• Flammability Rating: UL94V-0
• Insulation Material: Vinyl
• Rated Voltage: 300V
• Stud Size: 1/4 in.
• Lug Wire Size: 12-10 AWG
• Color Family: Yellow
• Length: 1.29 in.
• Width: 0.52 in.
• Max. Temperature Rating: 167 F
• Brand: Panduit
• MPN: PV10-14RX-L
• Condition: New
