Panduit PV10-14R-L Pan-Term Vinyl Insulated Ring Terminal 10-12 AWG PK50

Product Description

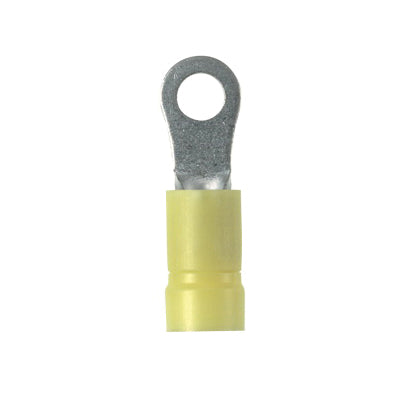

The Panduit PV10-14R-L is a vinyl insulated ring terminal designed for reliable electrical connections. This terminal is crafted with a brazed seam that prevents the barrel from splitting during crimping. The internal barrel features serrations to ensure optimal wire contact, enhancing the tensile strength of the connection.

• Vinyl insulation for protection and safety
• Internal barrel serrations for excellent wire contact
• Brazed seam prevents barrel splitting during installation

Product Highlights

The PV10-14R-L terminal is suitable for use in various electrical applications, especially where high vibration or movement may occur. Its design supports solid or stranded conductors and is ideal for connections requiring a strong mechanical bond.

Product Information

Standard Information

• Manufacturer: Panduit
• Manufacturer Part Number: PV10-14R-L

Technical Specifications

• Type: Ring Terminal
• Color: Yellow
• Material: Copper
• Insulation: Vinyl
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Size: #10 AWG
• Stud Size: 1/4 in
• Finish: Tin-Plated
• Size: 1.23 in Length
• Mounting Hole Size: 5/16 in
