Panduit PV10-14F-L Pan-Term Fork Terminal 1/4 in

Brand: PANDUIT
SKU: PV10-14F-L
Availability: In Stock

Ships same day if ordered by 12 pm
$65.58
$65.58
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

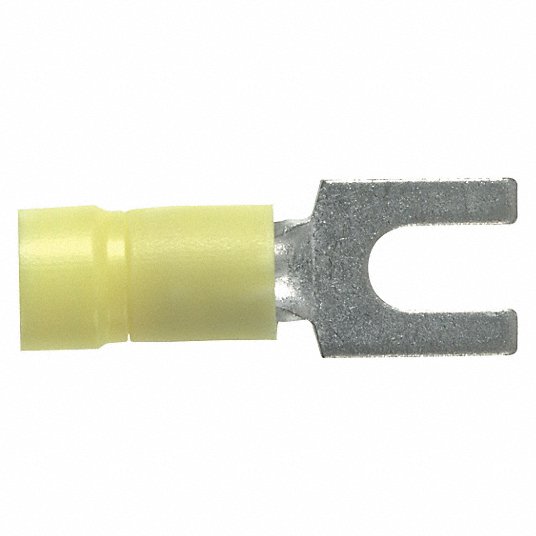

The PANDUIT PV10-14F-L is a Pan-Term® fork terminal designed for secure and reliable wire connections. This yellow vinyl insulated terminal is suitable for 12 to 10 AWG wires and features a 1/4 inch stud size. It provides insulation around the barrel to prevent wire strands from falling out and protects against short circuits and corrosion.

  • Fork Terminal
  • Vinyl insulated
  • Funnel entry
  • Brazed Seam

Product Highlights

The PANDUIT PV10-14F-L ensures consistent quality and protects wires during installation for a reliable, long-lasting connection.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: PV10-14F-L
  • Country of Origin: Mexico
Technical Specifications
ECCN
EAR99
Country of Origin
MX - Mexico
UPC
07498380416
UNSPSC
39121409
Brand
Pan-Term
Finish
Tin-Plated
Packaging
50 per Package
Standard
CSA,E2186,UL
Material
Copper
Use With
CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color
Yellow
Conductor Size
14-10 AWG
Flammability Rating
UL94V-0
Insulation Material
PVC
Outer Diameter
0.23 in
Rated Voltage
600V
Stud Size
1/4 in.
Lug Wire Size
14-10 AWG
Color Family
Yellow
Length
1.14 in.
Width
0.49 in.
Max. Temperature Rating
221°F
Category
Connectors, Interconnects
Terminals
Spade Connectors
Wire Gauge
10-12 AWG
Manufacturer
Panduit Corp
Insulation
Insulated
Series
Pan-Term
Features
Brazed Seam
Part Status
Active
Contact Finish
Tin
Terminal Type
Standard
Contact Material
Copper
Insulation Diameter
0.225" (5.72mm)
Width - Outer Edges
0.490" (12.45mm)
Material - Insulation
Vinyl
Length - Overall
1.140" (28.96mm)
Tongue Inside Opening
0.260" (6.60mm)
Mounting Type
Free Hanging (In-Line)
Base Product Number
PV10
Termination
Crimp
Barrel Length
0.44 in
Barrel Type
Funnel
Color Coding
Yellow
Enclosure
Fork shape
Max Operating Temperature
105 degrees C
Size
1/4"
TC Connection
Funnel
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.49 in
Type
Loose-Piece
Voltage
600 Volt
Wire Size
12-10 AWG
Product UPC
07498380416
Overall Length
1.14 in
Buy American Compliant
Y
CA Prop65 Warning
No
Prop 65
No
Standards and Certifications
Standards Met: UL Listed 587H E52164; CSA Certified LR31212
ADI Part Number
P9-PV1014FL
Brand Name
Panduit
Packaged Quantity
50
Product Name
Terminal Connector
Product Type
Terminal Connector
Connector Plating
Tin
Connector Type
Fork Terminal
Diameter
0.2"
Environmentally Friendly
Yes
Fork Terminal Shape
Standard Fork
Insulation Color
Yellow
Maximum Temperature
221 °F
Maximum Voltage
600 V
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Package Qty
50
Seam Style
Brazed
Standards
CSA LR31212; cULus 587H E52164
Strip Length
3/8 in
Termination Style
Crimp
Fork Length
0.7 in
