Panduit PV10-10R-L Vinyl Insulated Ring Terminal 10 AWG #10 Stud

Brand: PANDUIT
SKU: PV10-10R-L
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$40.61
$40.61
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

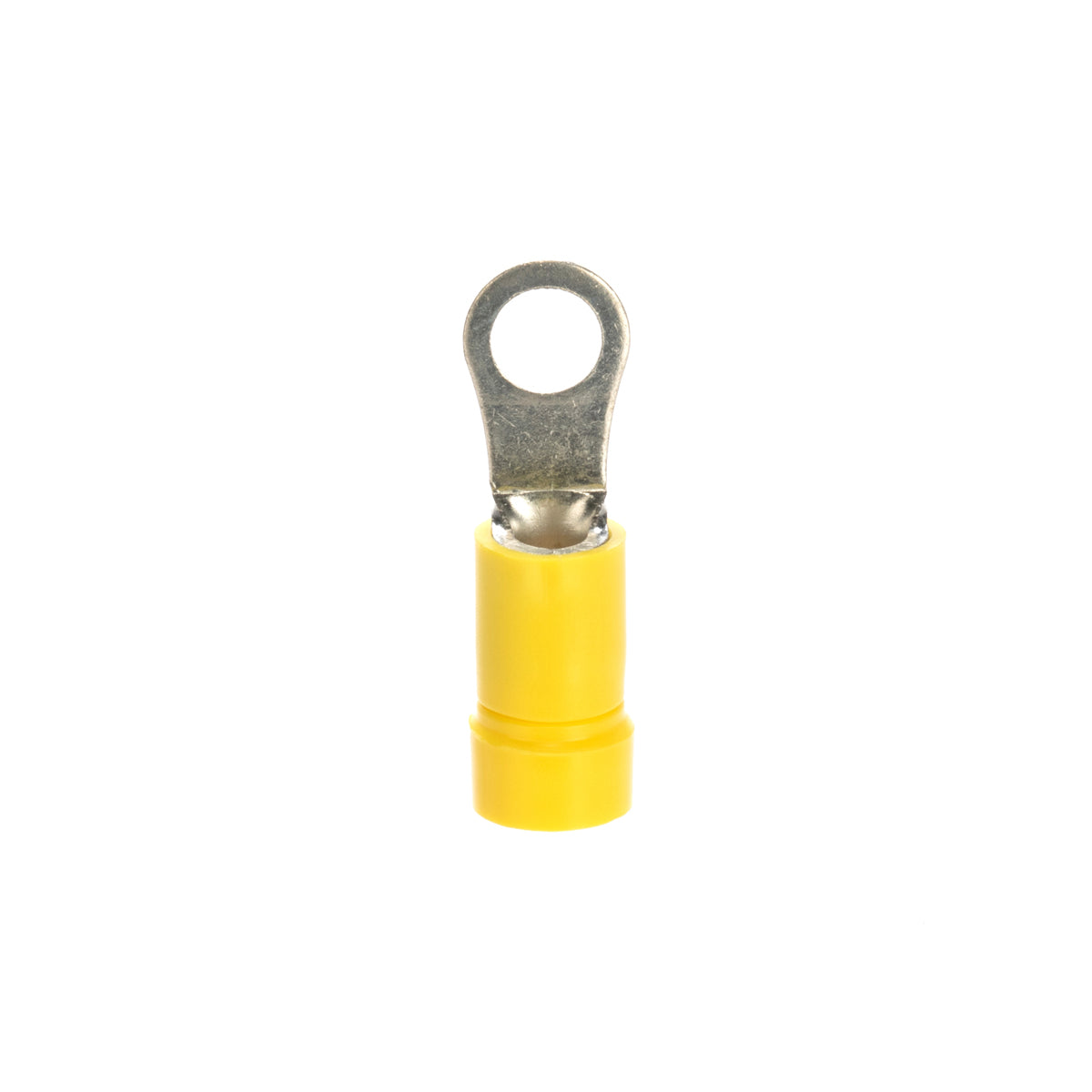

The Panduit PV10-10R-L is a vinyl insulated ring terminal designed for use with 10 to 12 AWG wires. The terminal features a brazed seam to prevent barrel splitting during crimping. Internal serrations enhance wire contact for better performance. The insulated barrel offers additional protection and strain relief when crimped.

  • Compatible with 10 AWG wire
  • UL and CSA rated for 600 volts
  • Brazed seam design enhances durability

Product Highlights

This terminal is ideal for applications that require secure connections in environments subject to vibration.

Product Information

Standard Information

  • Manufacturer: Panduit
  • MPN: PV10-10R-L

Technical Specifications

  • Color: Yellow
  • Material: Copper
  • Insulation Type: Vinyl
  • Voltage Rating: 600V
  • Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
  • Stud Size: #10
  • Wire Size: 10 AWG
  • Finish: Tin-Plated
Panduit PV10-10R-L Vinyl Insulated Ring Terminal 10 AWG #10 Stud

Vendor: PANDUIT

Panduit PV10-10R-L Vinyl Insulated Ring Terminal 10 AWG #10 Stud

$40.61

Vendor: PANDUIT

Panduit PV10-10R-L Vinyl Insulated Ring Terminal 10 AWG #10 Stud

$40.61
