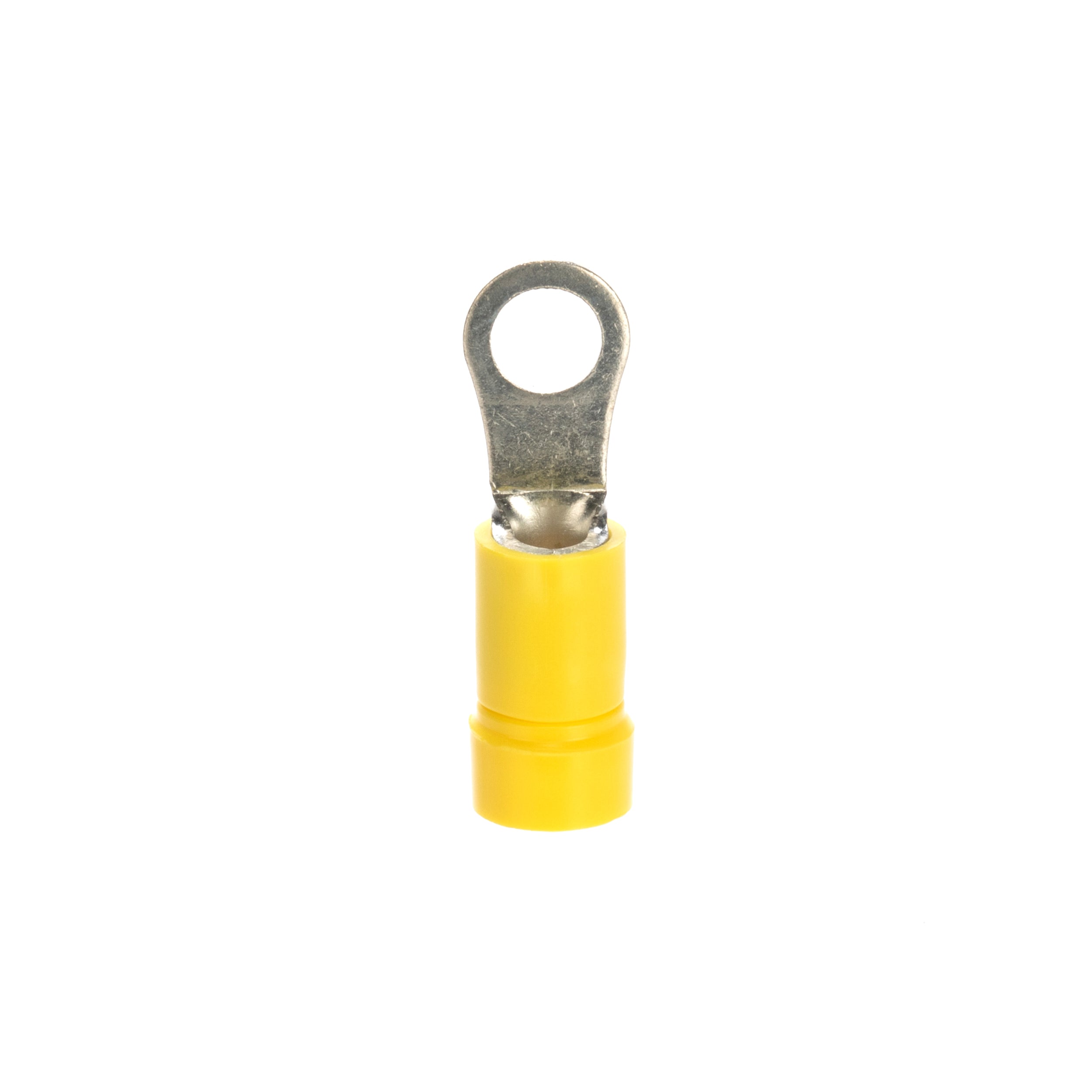

Panduit PV10-10R-L Vinyl Insulated Ring Terminal

Product Description

The Panduit PV10-10R-L is a vinyl insulated ring terminal designed for secure and reliable electrical connections. The terminal features a brazed seam that prevents barrel splitting during the crimping process. Serrations inside the barrel ensure optimal wire contact and strength. The extended barrel insulation provides added protection and strain relief once crimped.

• UL and CSA rated up to 600 V.
• Suitable for use with a variety of tools.
• Designed for 10 to 12 AWG wire sizes.

Product Highlights

Ideal for applications requiring a durable and secure electrical connection.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: PV10-10R-L

Technical Specifications

• Type: Ring Terminal
• Color: Yellow
• Material: Copper
• Insulation: Vinyl
• Finish: Tin-Plated
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600 V
• Stud Size: #10
