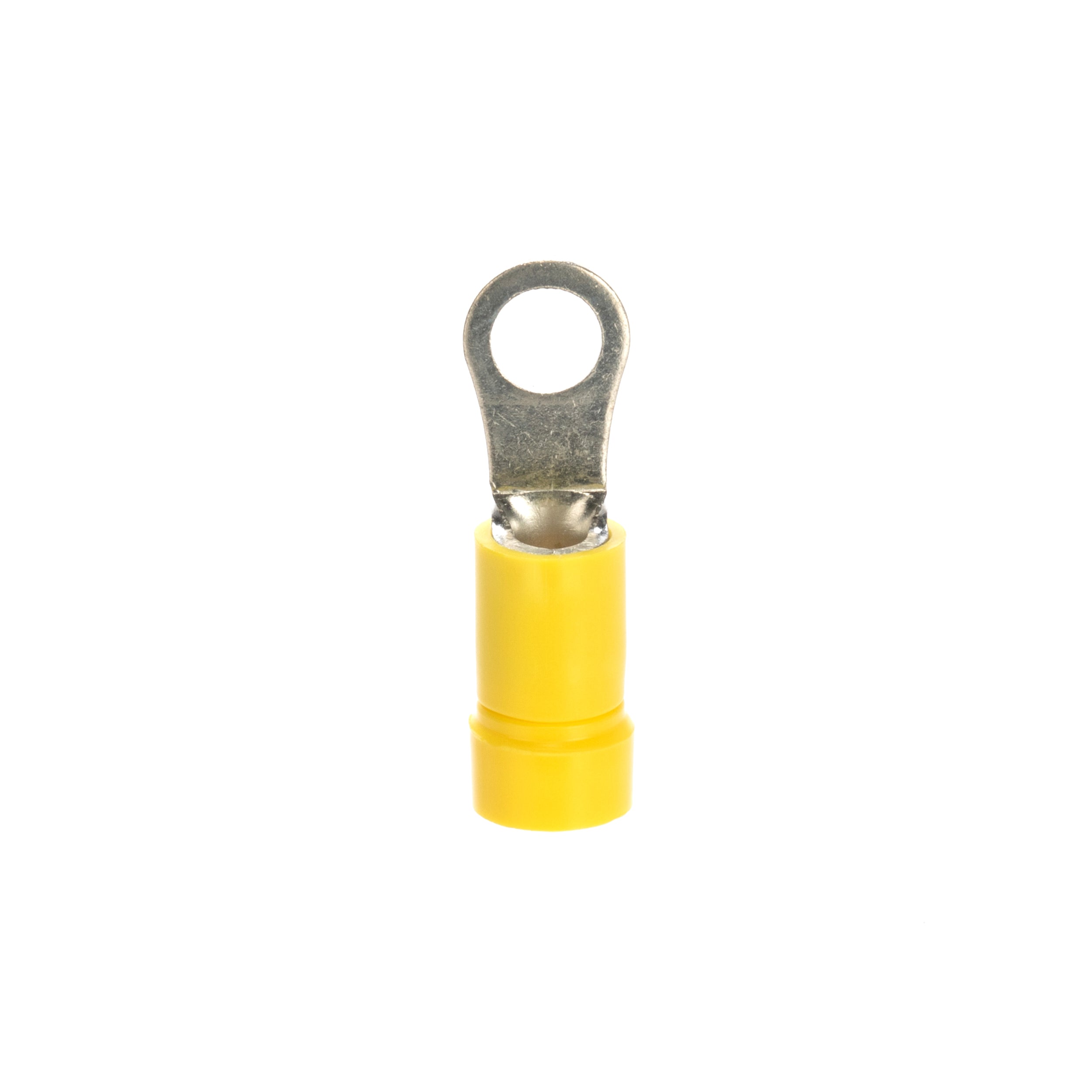

Panduit PV10-10R-L Ring Terminal 12-10 AWG #10

Product Description

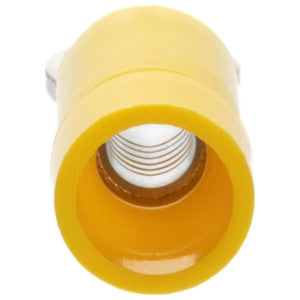

The PANDUIT PV10-10R-L Pan-Term® terminal is a vinyl insulated ring terminal. It is designed to connect two or more wires to a single connection point and acts as a circuit protection device. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

• Insulation support helps to prevent wire damage in bending applications
• Ring tongue design assures a secure connection in high vibration applications
• Brazed seam protects terminal barrel from splitting during the crimp process

Product Highlights

The PV10-10R-L ring terminals offer insulation support to prevent wire damage. They feature internal barrel serrations to assure good wire contact and maximum tensile strength.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PV10-10R-L
• Country of Origin: Mexico

Technical Specifications

• Type: Ring Terminal
• Manufacturer Part Number: PV10-10R-L
• Conductor Size: 12-10 AWG
• Stud Size: #10
• Length: 1.05 in
• Material: Copper
• Finish: Tin Plated
• Insulation: Vinyl
• Voltage Rating: 600 V
• Temperature Rating: 221 deg F
• Color: Yellow
• Standard: cULus Listed 587H E52164; CSA Certified LR31212
• Enclosure: Ring shape
• Wire Size: NO.10 AWG
• Connection: Funnel Entry
• Width - Outer Edges: 0.310" (7.87mm)
• Thickness: 0.040" (1.02mm)
• Insulation Diameter: 0.225" (5.72mm)
• Mounting Type: Free Hanging (In-Line)
• Tongue Thickness: 0.04 in
• Tongue Width: 0.31 in
• Flammability Rating: UL94V-0
