Product Description

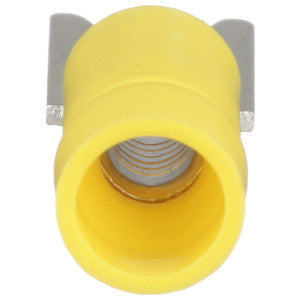

The PANDUIT PV10-10LF-L is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength. It is designed for 10-12 AWG wires and has a #10 stud size.
- Locking tongue design locks in place for a secure connection
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel serrations assure good wire contact and maximum tensile strength
Product Highlights
The PV10-10LF-L spade terminal ensures a reliable connection with its secure locking mechanism and durable construction.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PV10-10LF-L
-
Country of Origin: Mexico
Technical Specifications
-
Category: Connectors, Interconnects
-
Terminals: Spade Connectors
-
Wire Gauge: 10-12 AWG
-
Manufacturer: Panduit Corp
-
Insulation: Insulated
-
Series: EV10
-
Features: Serrated Termination
-
Color: Yellow
-
Part Status: Active
-
Contact Finish: Tin
-
Contact Material: Copper
-
Stud/Tab Size: 10 Stud
-
Insulation Diameter: 0.225" (5.72mm)
-
Width - Outer Edges: 0.340" (8.64mm)
-
Material - Insulation: Vinyl
-
Length - Overall: 1.040" (26.42mm)
-
Tongue Inside Opening: 0.190" (4.83mm)
-
Mounting Type: Free Hanging (In-Line)
-
Base Product Number: PV10
-
Termination: Crimp
-
Contact Finish Thickness: Tin-Plated
-
Conductor Size: 12-10 AWG
-
Flammability Rating: UL94V-0
-
Rated Voltage: 600V
-
Stud Size: #10
-
Lug Wire Size: 12-10 AWG
-
Color Family: Yellow
-
Length: 1.04 in.
-
Width: 0.34 in.
-
Max. Temperature Rating: 221
F
-
Manufacturer Part Number: PV10-10LF-L
-
Barrel Length: 0.4 in
-
Barrel Style: Funnel Entry
-
Connection Material: Copper
-
Insulation Color: Yellow
-
Insulation Material: Vinyl
-
Maximum Temperature: 221
F
-
Maximum Voltage: 600 V
-
Maximum Wire Size: 10 AWG
-
Minimum Wire Size: 12 AWG
-
Overall Length: 1.04 in
-
Package Qty: 50
-
Seam Style: Brazed
-
Special Features: Our One-Piece, Vinyl-Insulated Design Make Installations Quick and Easy with Our Locking Fork Terminal. Ensure a Reliable Connection with a Secure Locking Mechanism
-
Standards: CSA LR31212; UL 587H E52164
-
Strip Length: 3/8 in
-
Fork Length: 0.64 in
-
Fork Thickness: 0.04 in
-
Tongue Width: 0.34 in
-
Material: Copper
